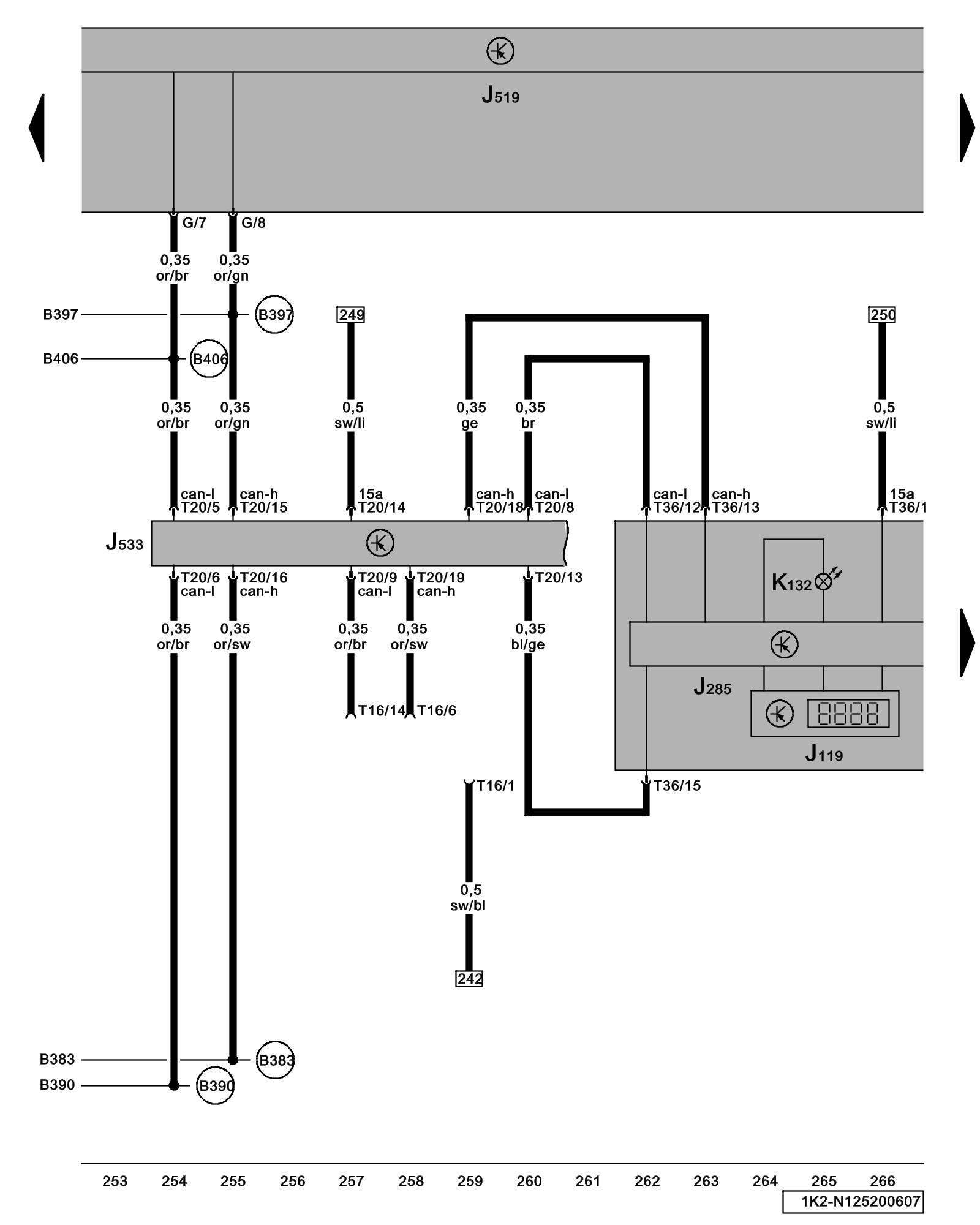

Diagram 125/20 (Tracks 253-266)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Multi-function Indicator (MFA), Instrument Cluster Control Module, Vehicle Electrical System Control Module, Data Bus On Board Diagnostic Interface, Electronic Power Control (EPC) Warning Lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J119 - Multi-function Indicator (MFA)

J285 - Instrument Cluster Control Module Component Locations Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J533 - Data Bus On Board Diagnostic Interface Component Locations Locations

K132 - Electronic Power Control (EPC) Warning Lamp

T16 - 16- pin connector, Data Link Connector (DLC), bellow steering column, left

T20 - 20-Pin Connector

T36 - 36-Pin Connector

(B383) - Powertrain CAN-Bus High Connection 1 (in main wiring harness)

(B390) - Powertrain CAN-Bus Low Connection 1 (in main wiring harness)

(B397) - Comfort System CAN-Bus High Connection 1 (in main wiring harness)

(B406) - Comfort System CAN-Bus Low Connection 1 (in main wiring harness)
