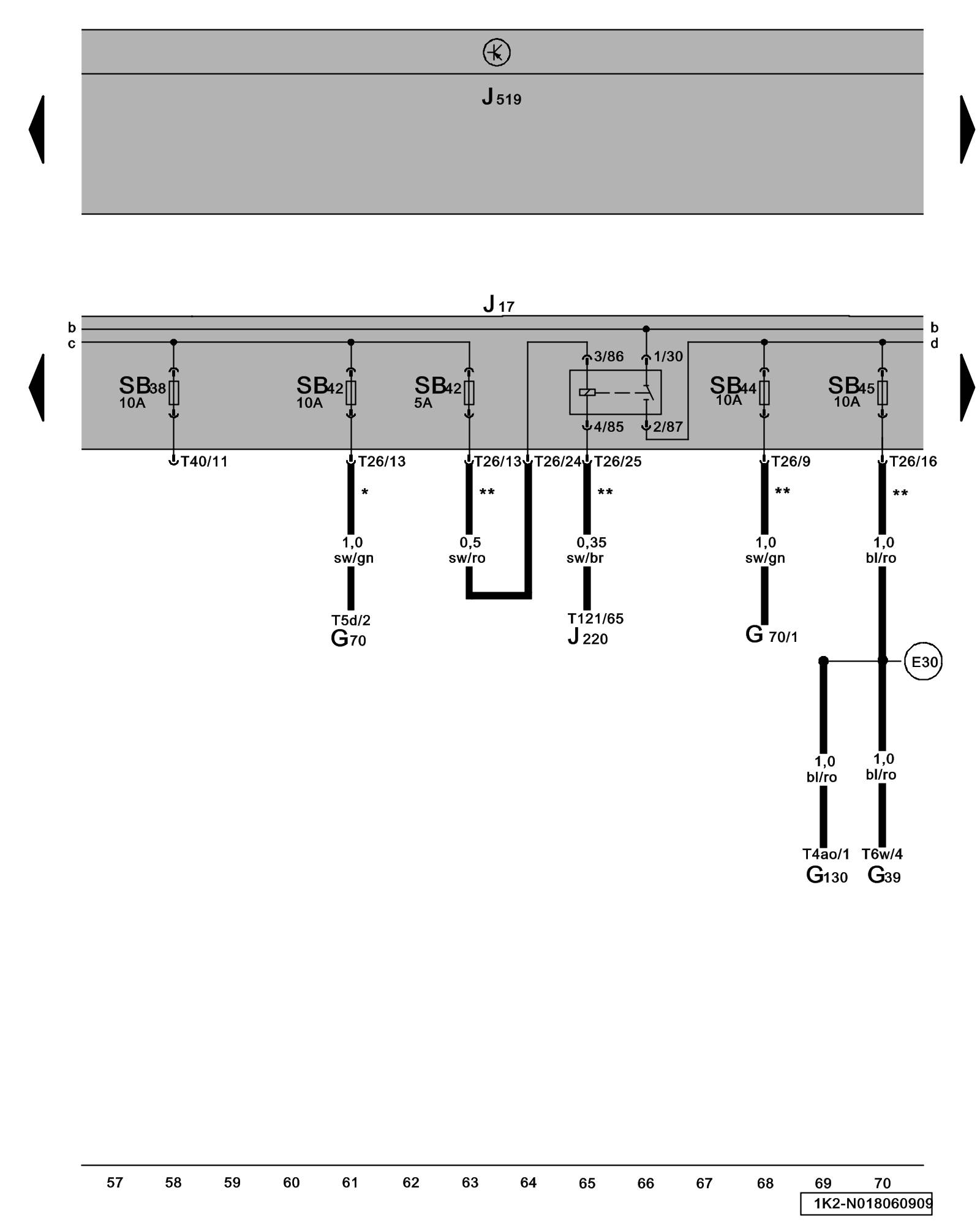

Diagram 18/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuel Pump (FP) Relay, Fuses SB38, SB42, SB44, SB45





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G39 - Heated Oxygen Sensor (HO2S) Locations

G70 - Mass Air Flow (MAF) Sensor Locations

G130 - Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) Locations

J17 - Fuel Pump (FP) Relay Locations

J220 - Motronic Engine Control Module

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

SB38 - Fuse 38 (on fuse panel)

SB42 - Fuse 42 (on fuse panel)

SB44 - Fuse 44 (on fuse panel)

SB45 - Fuse 45 (on fuse panel)

T4ao - 4-Pin Connector

T5d - 5-Pin Connector

T6w - 6-Pin Connector

T26 - 26-Pin Connector

T40 - 40-Pin Connector

T121 - 121-Pin Connector

(E30) - Connection (87a), in wiring harness engine

* - Diesel engines only

** - Gasoline engines only
