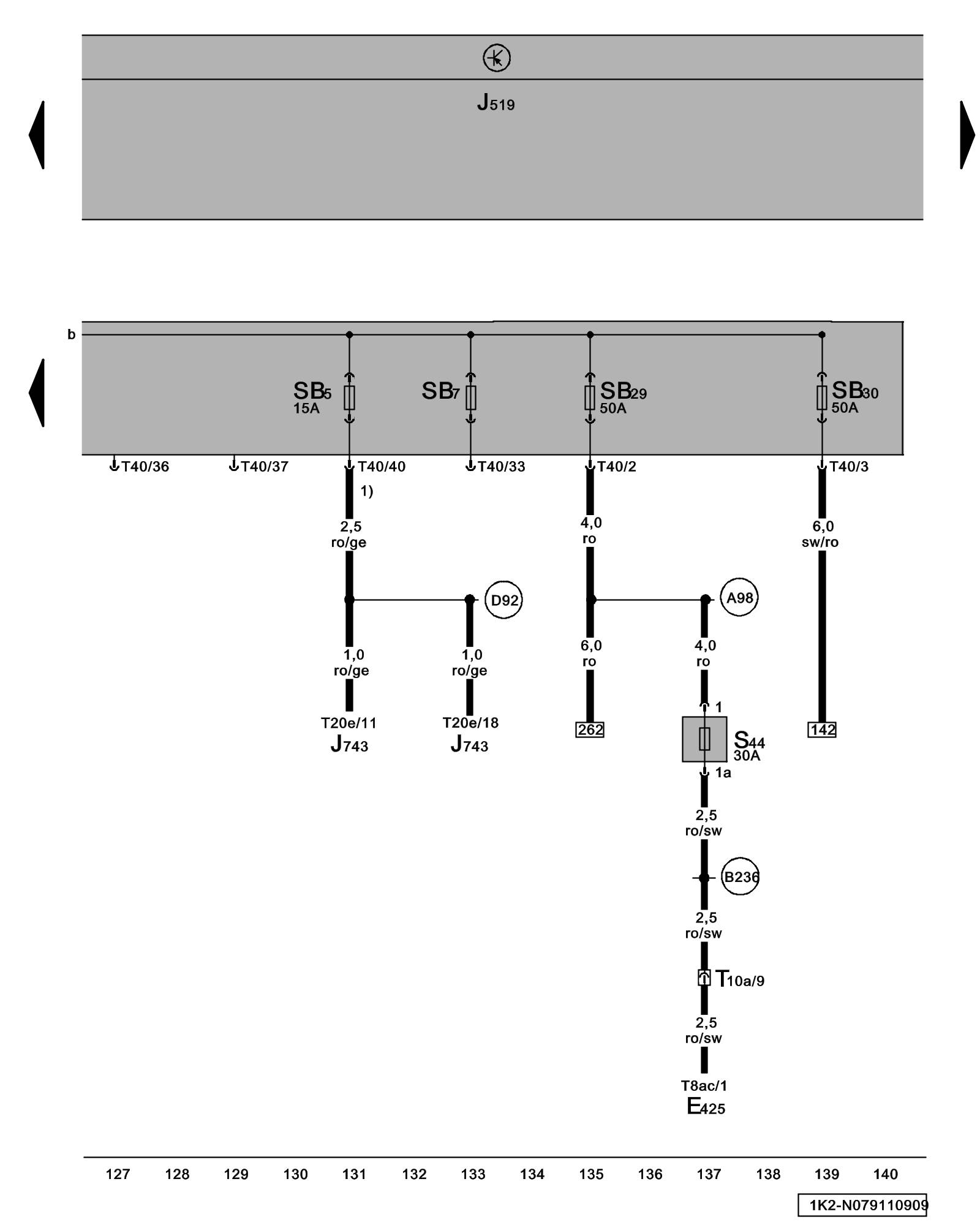

Diagram 79/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses (on fuse panel B)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E425 - Backrest Adjustment Button

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J743 - Direct Shift Gearbox (DSG) Mechatronic

S44 - Driver Power Seat Adjustment Circuit Breaker 1 Locations

SB5 - Fuse 5 (on fuse panel B)

SB7 - Fuse 7 (on fuse panel B)

SB29 - Fuse 29 (on fuse panel B)

SB30 - Fuse 30 (on fuse panel B)

T8ac - 8-Pin Connector

T10a - 10-Pin Connector

T20e - 20-Pin Connector

T40 - 40-Pin Connector

(A98) - Plus Connection 4 (30) (in instrument panel wiring harness)

(B236) - Plus Connection 6 (30a) (in interior wiring harness)

(D92) - Connection (30 al) (in engine compartment wiring harness)

1) - Through June 2007

Previous Diagram 79/10 (Tracks 113-126)

Next Diagram 79/12 (Tracks 141-154)
