Diagram 165/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

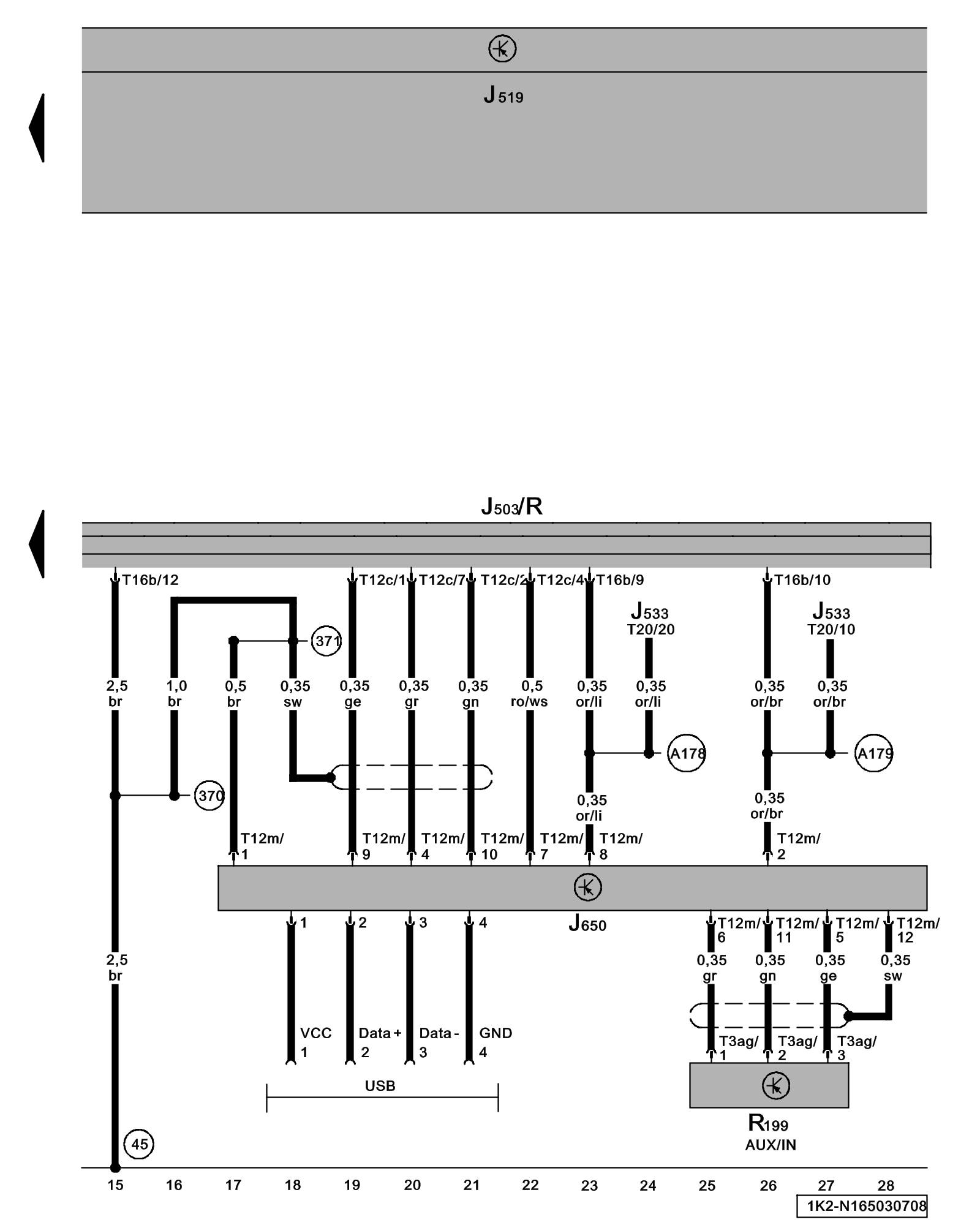

Radio/Navigation Display Unit Control Module, Radio, External Audio Source Connection (AUX/IN),





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/Navigation Display Unit Control Module Radio Navigation System Component Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J533 - Data Bus On Board Diagnostic Interface Component Locations Locations

J650 - Multimedia Control Module

R - Radio Sound System Component Locations

R199 - External Audio Source Connection, (AUX/IN) External Audio Source Connection

T3g - 3-Pin Connector

T12c - 12-Pin Connector

T12m - 12-Pin Connector

T16b - 16-Pin Connector

T20 - 20-Pin Connector

(45) - Ground Connection (behind instrument panel, center)

(370) - Ground Connection 5 (in main wiring harness)

(371) - Ground Connection 6 (in main wiring harness)

(A178) - Infotainment High-Bus Connection (in instrument panel wiring harness)

(A179) - Infotainment Lo-bus Connection (in instrument panel wiring harness)

Previous Diagram 165/2 (Tracks 1-14)
