Front Passenger's Door Control Module J387

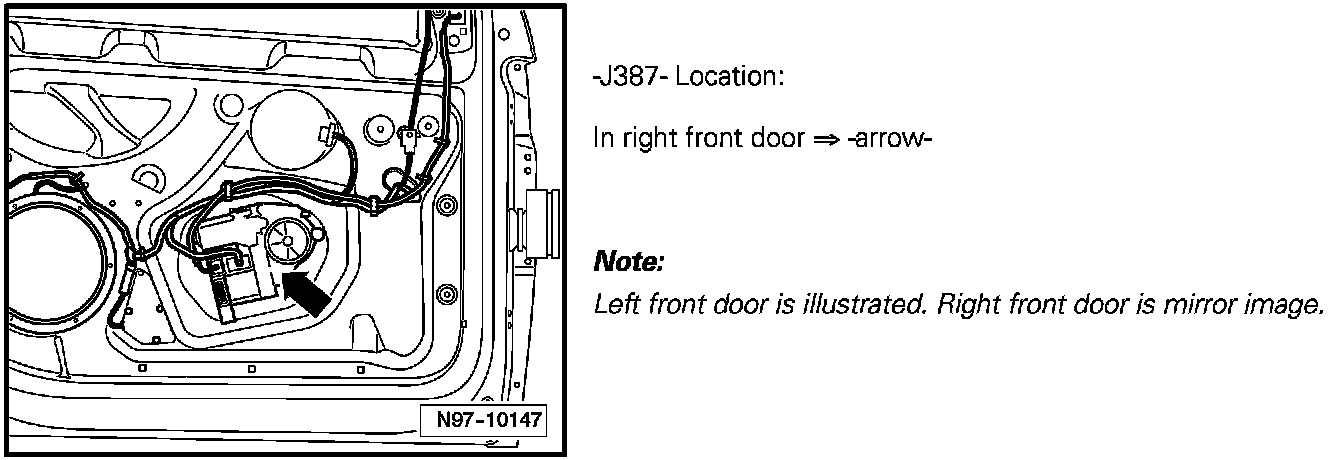

Front Passenger's Door Control Module J387 Part 1:

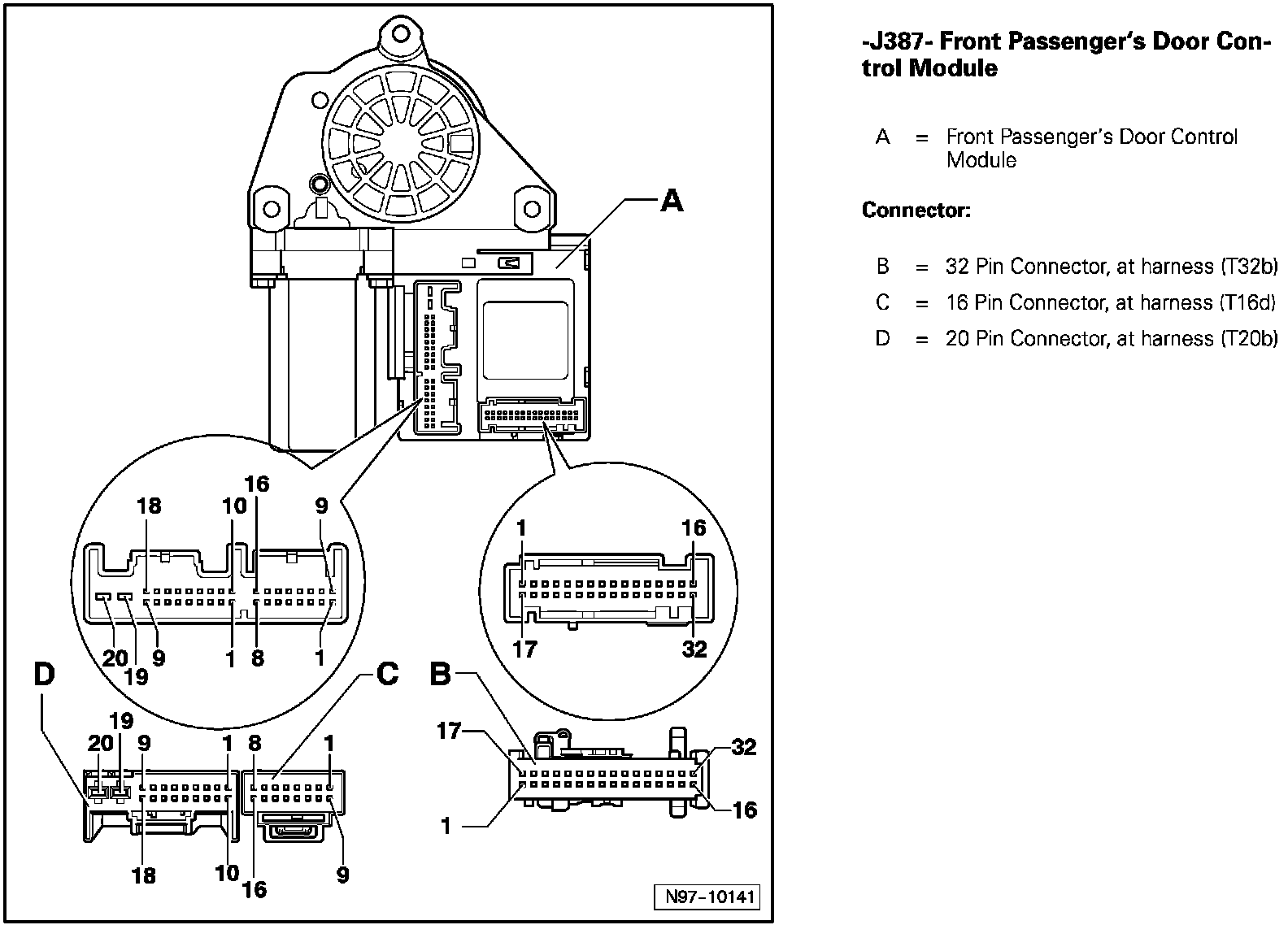

Front Passenger's Door Control Module J387 Part 2:
