Control Modules Overview

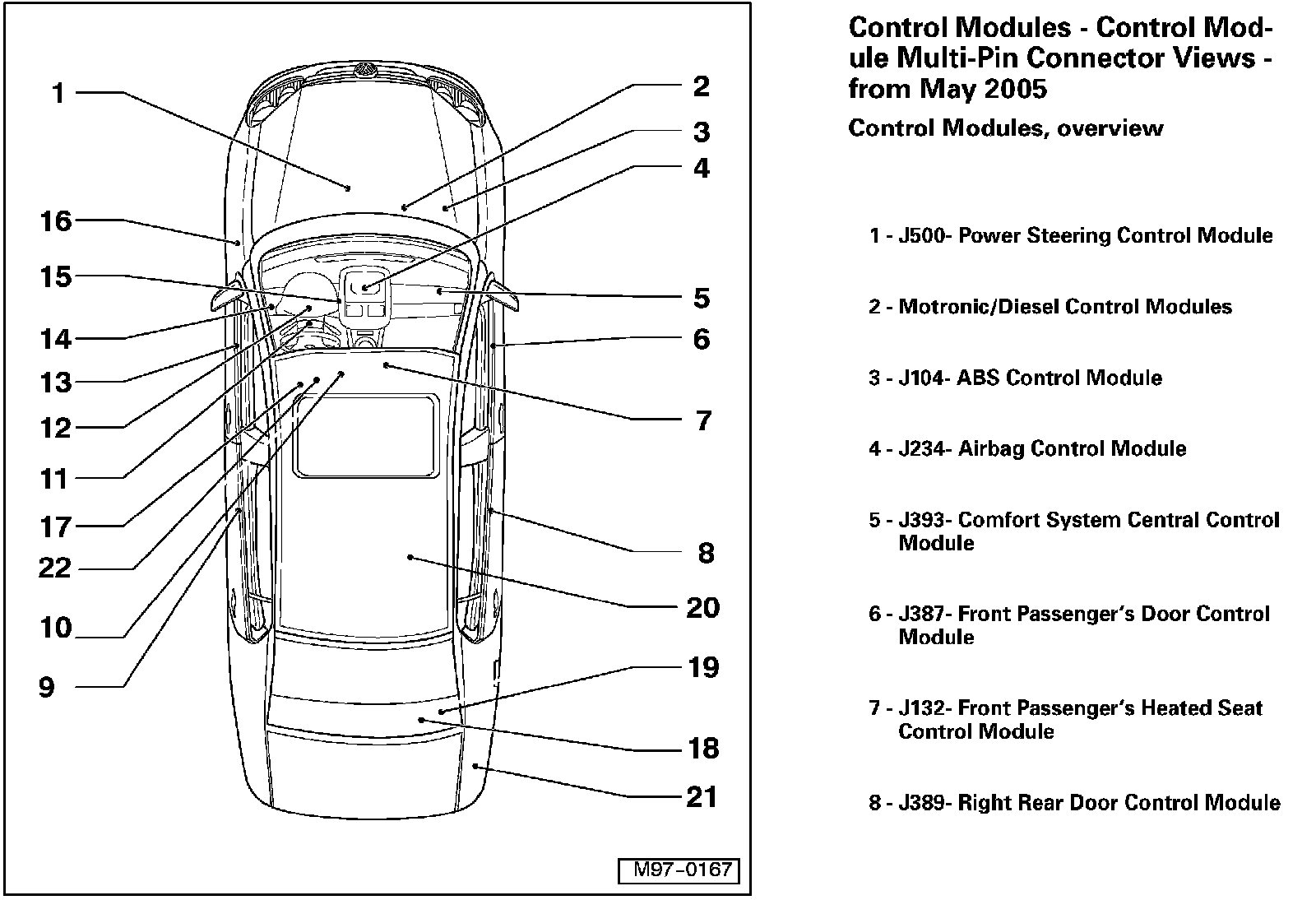

Control Modules, Overview Part 1:

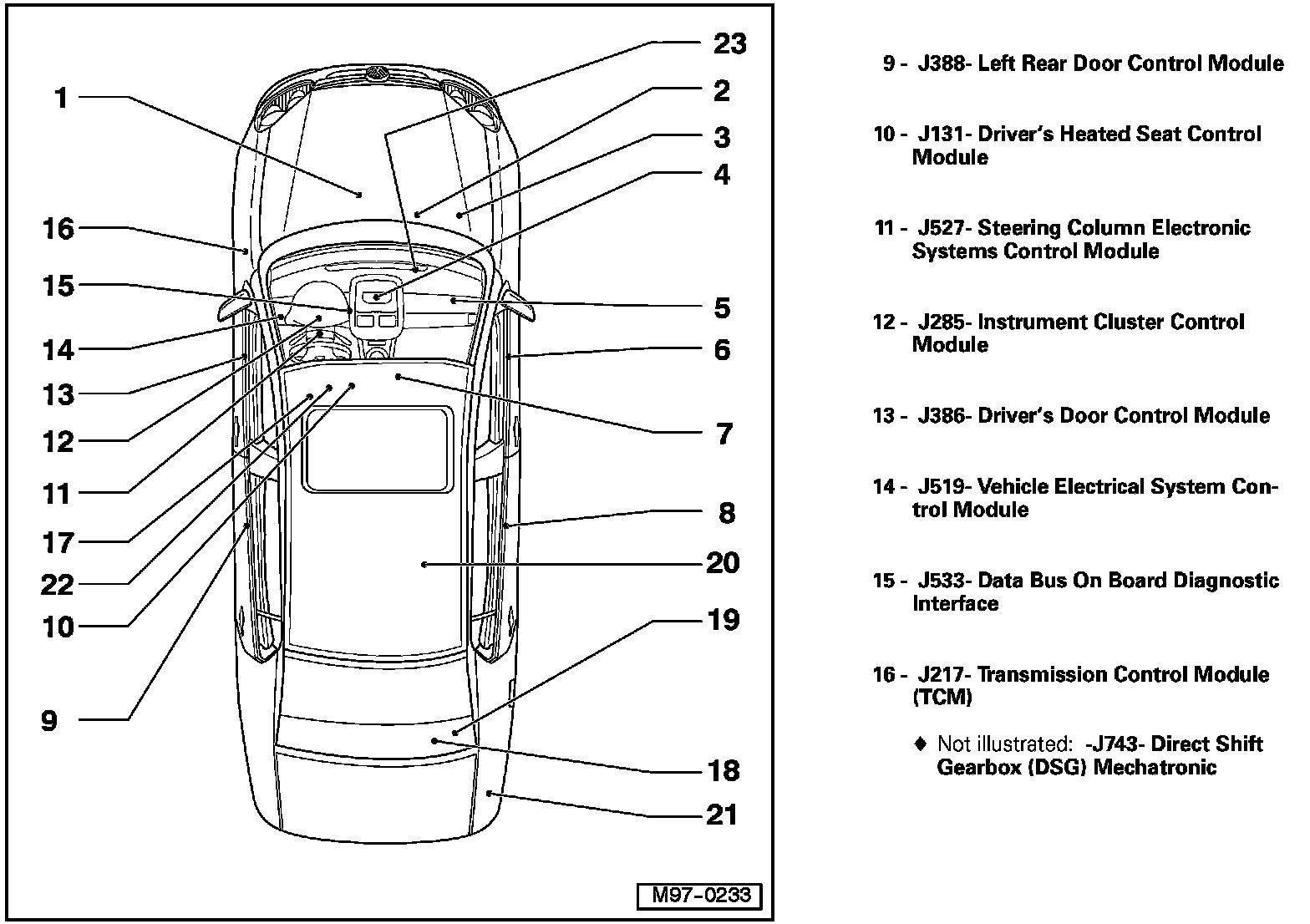

Control Modules, Overview Part 2:



Control Modules, Overview Part 3:
