Home >> Volkswagen >> 2008 >> Jetta GLI (1K2) L4-2.0L Turbo (CCTA) >> Repair and Diagnosis >> Diagrams >> Components >> Control Modules,From May 2005 >> ABS Control Module (Models With ABS/EDL/ASR/ESP) J104

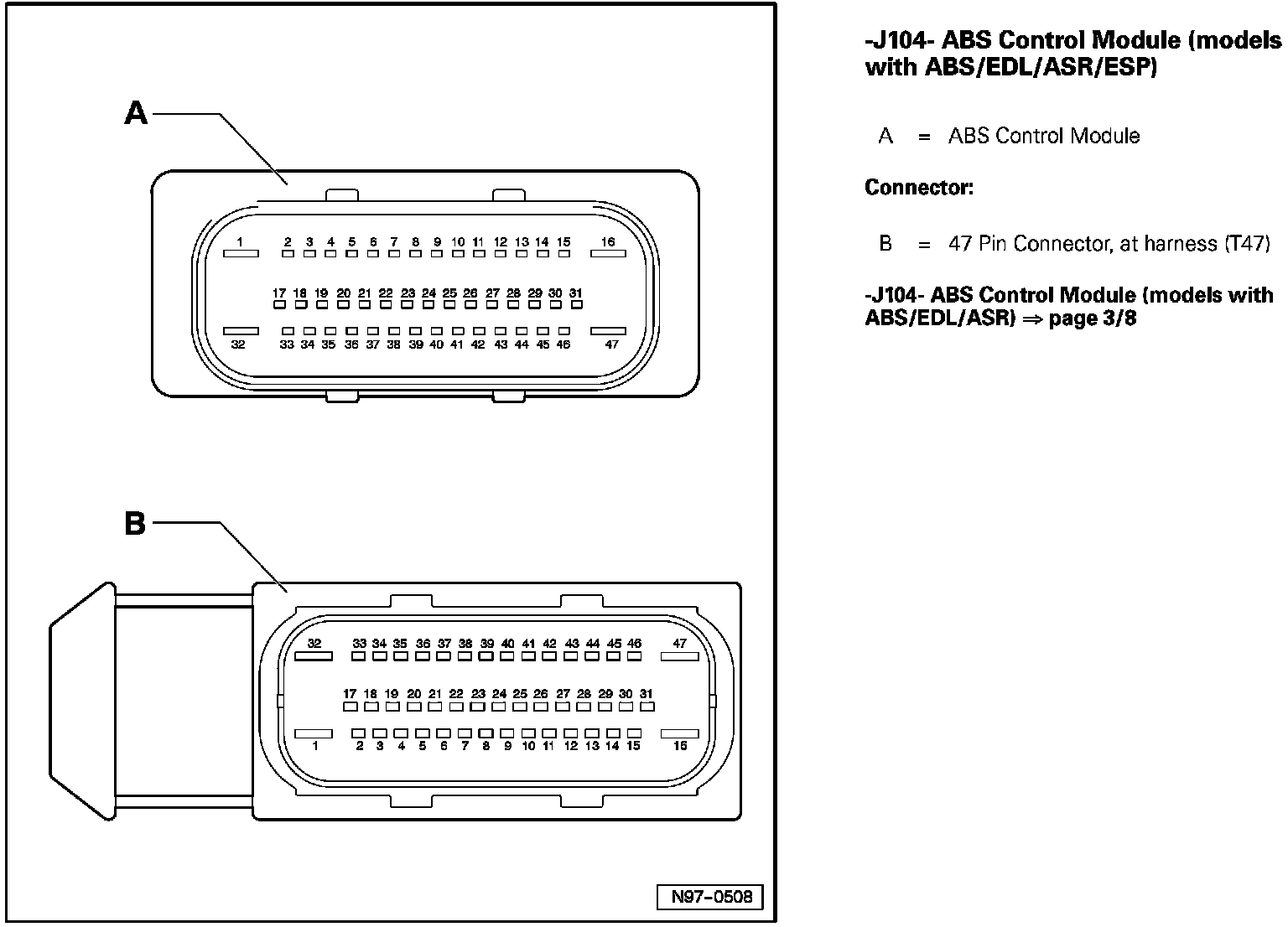

ABS Control Module (Models With ABS/EDL/ASR/ESP) J104

ABS Control Module (Models With ABS/EDL/ASR/ESP) J104:
