Sound Proofing / Insulation: Service and Repair

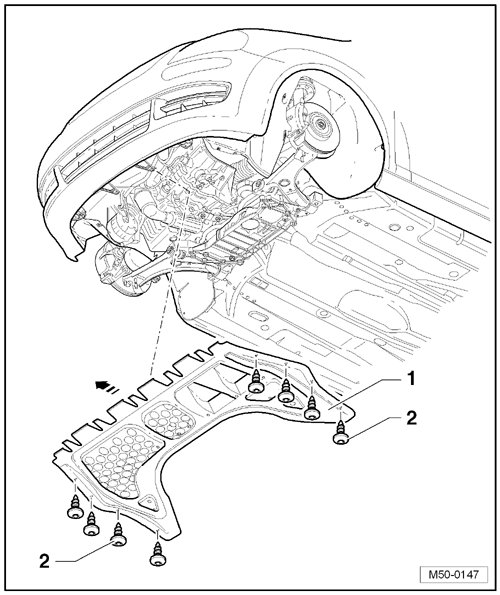

Noise Insulation Assembly Overview

Special tools, testers and auxiliary items required

• Torque wrench (V.A.G 1783)






1 Noise Insulation

• - Arrow - points toward the front of the vehicle.

• To remove, unscrew screws - 2 -.

2 Screw

• Qty. 8

• 2 Nm
