Water Drain Hoses, Cleaning

Water Drain Hoses, Cleaning

• For cleaning, an assisting tool is recommended, such as a speedometer drive shaft inner cable, approx. 2300 mm (90.5 in.) long.

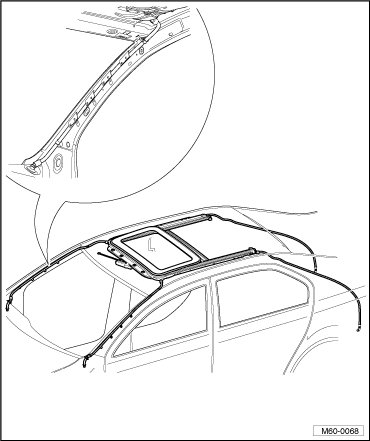

Front water drain hoses

Route water drain hoses at front on A-pillar and end at facing wall crossmember. Cleaning is performed from the sliding/tilting roof cut-out.

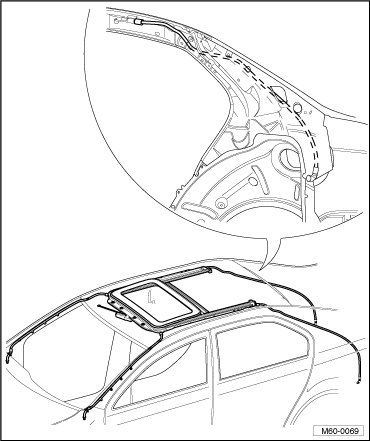

Rear water drain hoses

The rear water drain hoses run through the C-pillars and end in the rear wheel housings. Clean starting from the wheel housing outward, wheel housing liner must be removed to do so. Refer to => [ Rear Wheel Housing Liner ] Rear Wheel Housing Liner.
