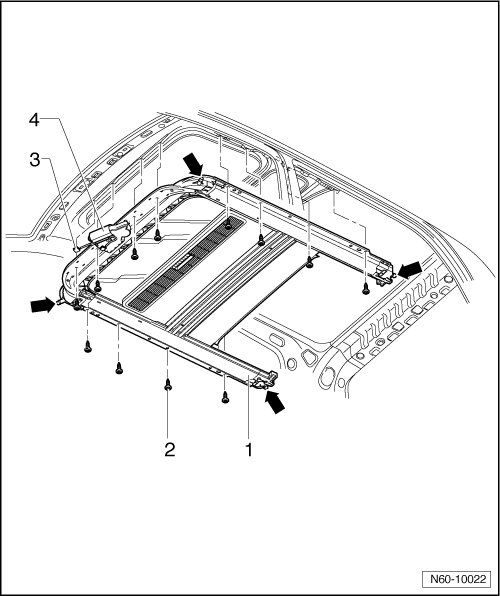

Installation Unit Assembly Overview

Installation Unit Assembly Overview






1 Assembly Unit

• Removing and installing, refer to => [ Installation Unit ] Installation Unit

2 Screw

• Qty. 12

• 8 Nm

3 Connector

4 Sunroof Drive Motor

• Removing and installing, refer to => [ Sunroof Glass Panel Drive Motor ] Sunroof Glass Panel Drive Motor
