Roof Rail Overview

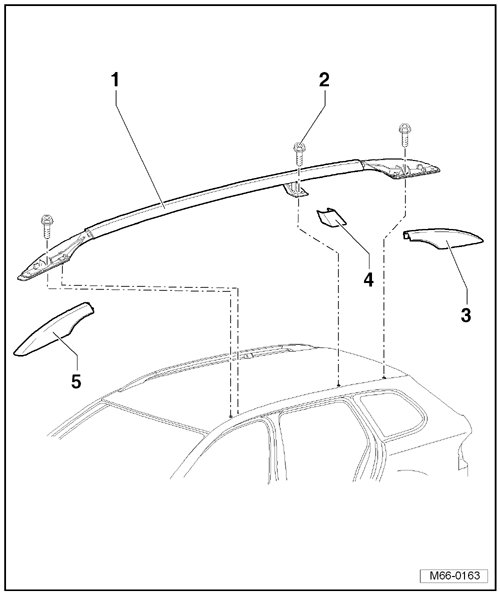

Roof Rail Assembly Overview






1 Roof Rail

• Removing and installing, refer to => [ Roof Molding ] Roof Molding

2 Screw

• 3 per side

• 20 Nm

3 Rear Roof Rail Cover

4 Center Roof Rail Cover

5 Front Roof Rail Cover
