Storage Compartment and Ashtray

Storage Compartment and Ashtray

Removal

- Turn off the ignition.

With Automatic Transmission

- Loosen boot from cover.

With Manual Transmission and Direct Shift Gearbox (DSG)

- Loosen boot from cover.

All Vehicles

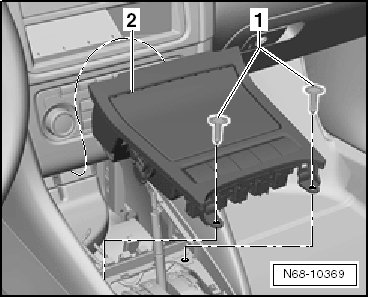

- Remove the two bolts - 1 - (1.5 Nm).





- Remove the ashtray - 2 - from center console and (depending on vehicle equipment) disconnect the wiring harnesses.

• A storage compartment may be installed in place of an ashtray. Removing the storage compartment is identical to removing the ashtray.

Installation

- To install, perform the steps used for removal in reverse order.
