Instrument Panel Side Covers







Instrument Panel Side Covers

Removal

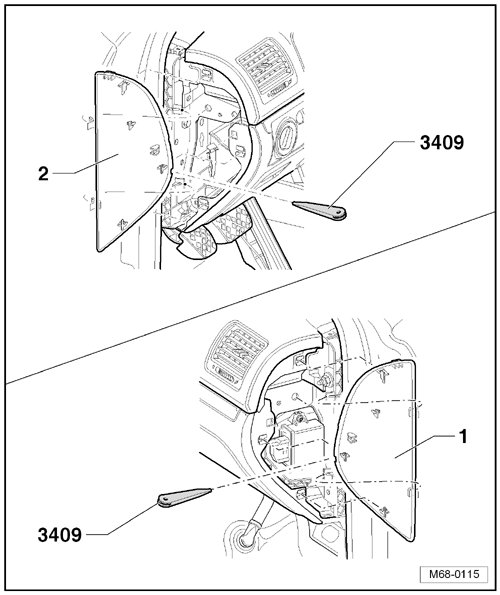

- Using (3409), pry right side instrument panel cover - 1 - out of locking mechanisms.

- Using (3409), pry left side instrument panel cover - 2 - out of locking mechanisms.





Installation

- To install, perform the steps used for removal in reverse order.
