Center A-pillar Trim

Center A-pillar Trim

• Removing and installing on the left side of the vehicle is described here. Removing and installing on the right side is identical.

Removal

- Remove side instrument panel cover. Refer to => [ Instrument Panel Side Covers ] Instrument Panel Side Covers.

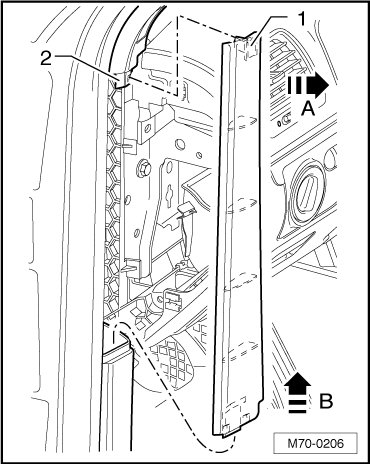

- Remove trim securing clip - 1 - out of mount - 2 - of upper A-pillar trim - arrow A -.





- Remove trim from door seal.

- Pull trim upward out of lower A-pillar trim - arrow B -.

Installation

- To install, perform the steps used for removal in reverse order.

• Ensure trim is in door seal molding after installation.
