Body - Fuel Door Will Not Close
55 07 07September 7, 2007
2010494 Supersedes Technical Bulletin Group 55 number 06-02, dated June 1,
2006 due to updated part and installation procedure Fuel Tank Lid, Does Not Close, Fuel Tank Lid Unlock Motor -V155- Release Rod Does Not Return Properly

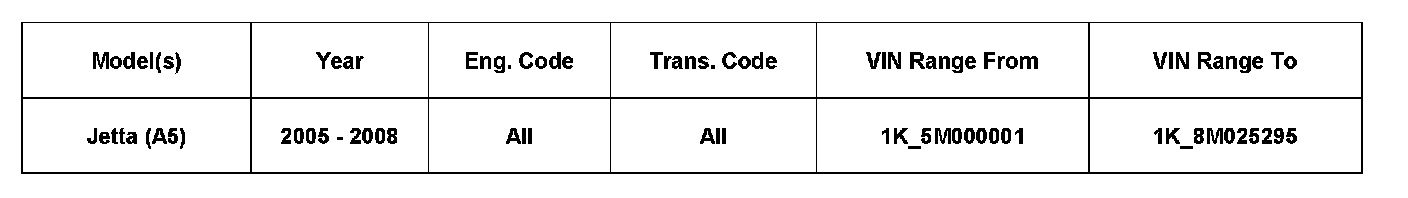

Vehicle Information
Condition
Fuel tank lid (fuel door) does not close.
Technical Background
This condition may be caused by a fuel tank lid unlock motor release rod which may not completely return to its closed position.
Production Solution
Not applicable.
Service
Tip:
If repaired with hose per previous bulletin, check cut length of hose for 4mm length. If hose is 4mm in length, remove and dispose.
^ Remove fuel tank lid unlock motor (see Repair Manual, Body Exterior, Group 55 - Hood, Lids).
^ Separate release rod from motor -V155-
^ Trim a 3.5 mm Long section of hose from Part No: 1J0877231A.
Tip:
Part No: 1J0877231A will repair approx. 300 vehicles and is considered shop supplies.
^ Ensure position of repair -arrow- and Install release rod back
into position on motor.
^ Install release motor and check operation (see Repair Manual Body Exterior Group 55 - Hood, Lids, Fuel Tank Lid Unlock Motor -V155-, removing and installing).
^ Place the 3.5 mm hose section onto the motor piston -arrow as
shown.
Note:
Ensure proper opening and closing operation of fuel door after completion of repair.
Warranty
Tip:
Part No. 1J0877231A will repair approx. 300 vehicles and is considered shop supplies.
Required Parts and Tools
Additional Information
All part and service references provided in this Technical Bulletin are subject to change and/or removal.
Always check with your Parts Dept. and Repair Manuals for the latest information.
