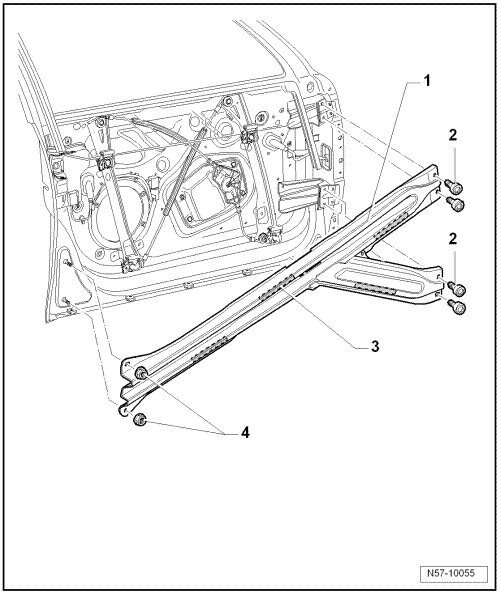

Side Impact Protection Assembly Overview

Side Impact Protection Assembly Overview






1 Side Impact Protection

• To remove and install, outer door panel must be removed, refer to => [ Outer Door Panel ] Outer Door Panel

2 Bolt

• Qty. 4

• 20 Nm

3 Insulation

4 Nut

• Qty. 2

• 20 Nm
