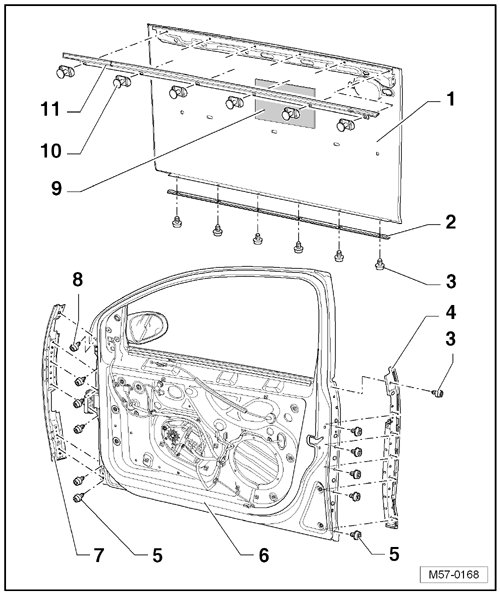

Door Construction Assembly Overview

Door Construction Assembly Overview

• A new door concept was introduced for the Jetta from MY 2005.

The door consists of inner - 6 - and outer door panel - 1 -.

Parts are joined by the front - 7 - and the rear - 4 - retaining tracks.

Retaining tracks are bolted to door inner part and bonded to outer door panel.

Inner door part - 6 - undertakes among other things the function of the previously known subframe. Loudspeakers, window regulators, window regulator motors, wires, window guide, exterior mirror and door lock are installed on door inner part.

Outer door panel - 1 - is also bolted to door inner part on the lower edge. Exterior window shaft seal, insulation and outer door handle are installed on outer door panel.


Various bolts are used to secure the outer door panel. Outer door panel is damaged if not allocated correctly.





1 Outer Door Panel

• Removing and installing. Refer to => [ Outer Door Panel ] Outer Door Panel

2 Edge Protection

• Between outer door panel and door inner part

3 Bolt

• Characteristic: Bolt has point and thinner washer

• 6 pieces on lower edge

• 1 piece in rear rail area

• 10 Nm

4 Rear Retaining Track

• Adhesive (DH 009 100 03)

5 Bolt

• Characteristic: Bolt without point and has thicker washer

• 10 pieces for both retaining tracks

• 14 Nm

6 Inner Door Part

• Assembly overview, refer to=> [ Inner Door Section Assembly Overview ] Inner Door Section Assembly Overview

7 Front Retaining Track

• Adhesive (DH 009 100 03)

8 Bolt

• Characteristic: Bolt has point and thicker washer

• 1 piece in front rail area

• 10 Nm

9 Insulation

• Self-adhesive

• To adhere, insulation must be preheated and then pressed on firmly

10 Clip

• Qty. 6

11 Window Shaft Seal

• Must be installed before installing outer door panel
