Volkswagen Radio and Navigation Systems

Volkswagen Radio and Navigation Systems

The anti-theft coding electronically prohibits unauthorized individuals from starting the unit again after it has been removed. This anti-theft code is also called the radio code of security code. Security code means that every unit with anti-theft coding has been programmed with its own code. This security code is not active from the factory. If a device card is available, the security code is on it. If the device card is not available, the safety code can be requested from the central database using the Vehicle Diagnosis Tester.

• If an incorrect code is entered while canceling the electronic lock, the entire process can be repeated just one time more. If an incorrect code is entered once again, the unit will lock up for about one hour. It will not work. After an hour, during which the unit must remain switched on, the display will go out. The electronic lock can be cancelled as previously described. The cycle: 2 attempts, an hour locked, begins again.

Procedure

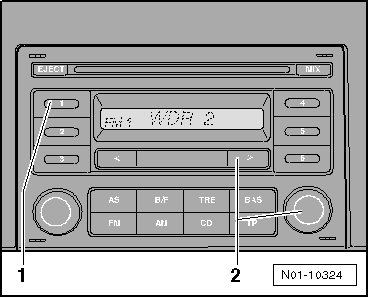

For "Radio unit RCD 200", activate fixed code as follows:

- Switch on radio.

"SAFE" will first appear and then after three seconds "1000" will appear.






- Enter the first digit of the four-digit code with radio station button 1. With the second button 2 enter the second digit, etc.

- Confirm the code by pressing one of the two buttons - 2 - for 2 seconds.

The radio is ready for use.

• If the radio was removed or if the vehicle battery was disconnected, then it is not necessary to manually enter the anti-theft code. The code number was saved after the first time it was entered.

• If the radio is installed in a different vehicle, then it will be necessary to manually enter the code number.

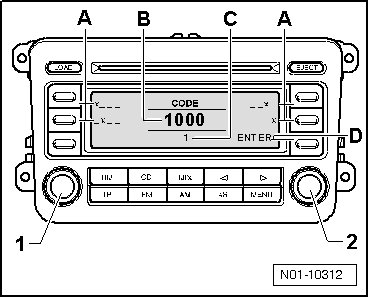

Activate security code as follows on "RCD 300 radio system" and "RCD 500 radio system":

- Turn on the radio/navigation system by pressing button - 1 -.






- The display will indicate "SAFE".

- After 3 seconds, "1000" will be indicated on the display.

- Enter the code number on the radio card using the multifunction buttons - A -.

In the display, the position of the code number that is to be set is indicated by a - X -, next to the four multi-function buttons.

- Press the corresponding multi-function button repeatedly until the correct number is indicated in the middle of the display - B -.

- If the entry has been correctly completed, press the multi-function button - D - next to the word "ENTER".

Radio is ready for operation again and switches into the last operating state.

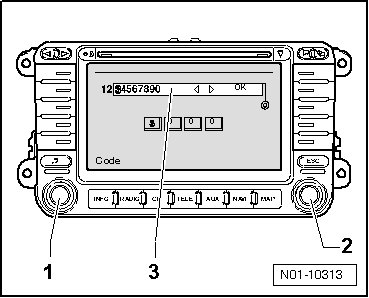

Activate fixed code for "Radio-Navigation system MFD 2" as follows:






- Turn on the radio/navigation system by pressing button - 1 -.

You can find the security code on the unit card.

- Enter the numeric code, by turning the button - 2 - until the desired number appears in the display - 3 -. Confirm the number and move on to the next field by briefly pressing the button.

- Confirm number code by marking "OK" in character list - 3 - using rotary/push knob - 2 - and confirm by briefly pressing knob.

If the security code was entered in the radio properly, after a short "Learning phase" the actual frequency will be displayed.

The LED at upper right of radio-navigation system must blink when ignition key is removed.

If the LED flashes, the radio/navigation system is ready for operation and the anti-theft coding is active.
