Parking Aid Control Module (J446), 4-Channel

Parking Aid Control Module (J446), 4-Channel

The parking aid control module is located behind the right luggage compartment side trim.


• Turn off the ignition and all electrical consumers.

• Remove the key.

Removal

- Remove right luggage compartment trim.

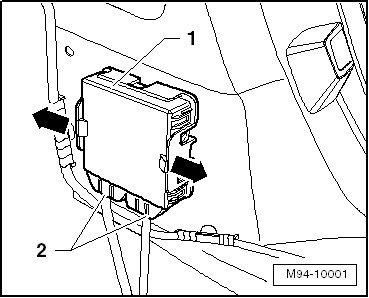

- Disconnect the connectors - 2 - from the parking aid control module - 1 -.






- Push the tabs - arrows - to the outside and remove the parking aid control module - 1 -.






Installation

Installation is performed in the reverse order of removal.
