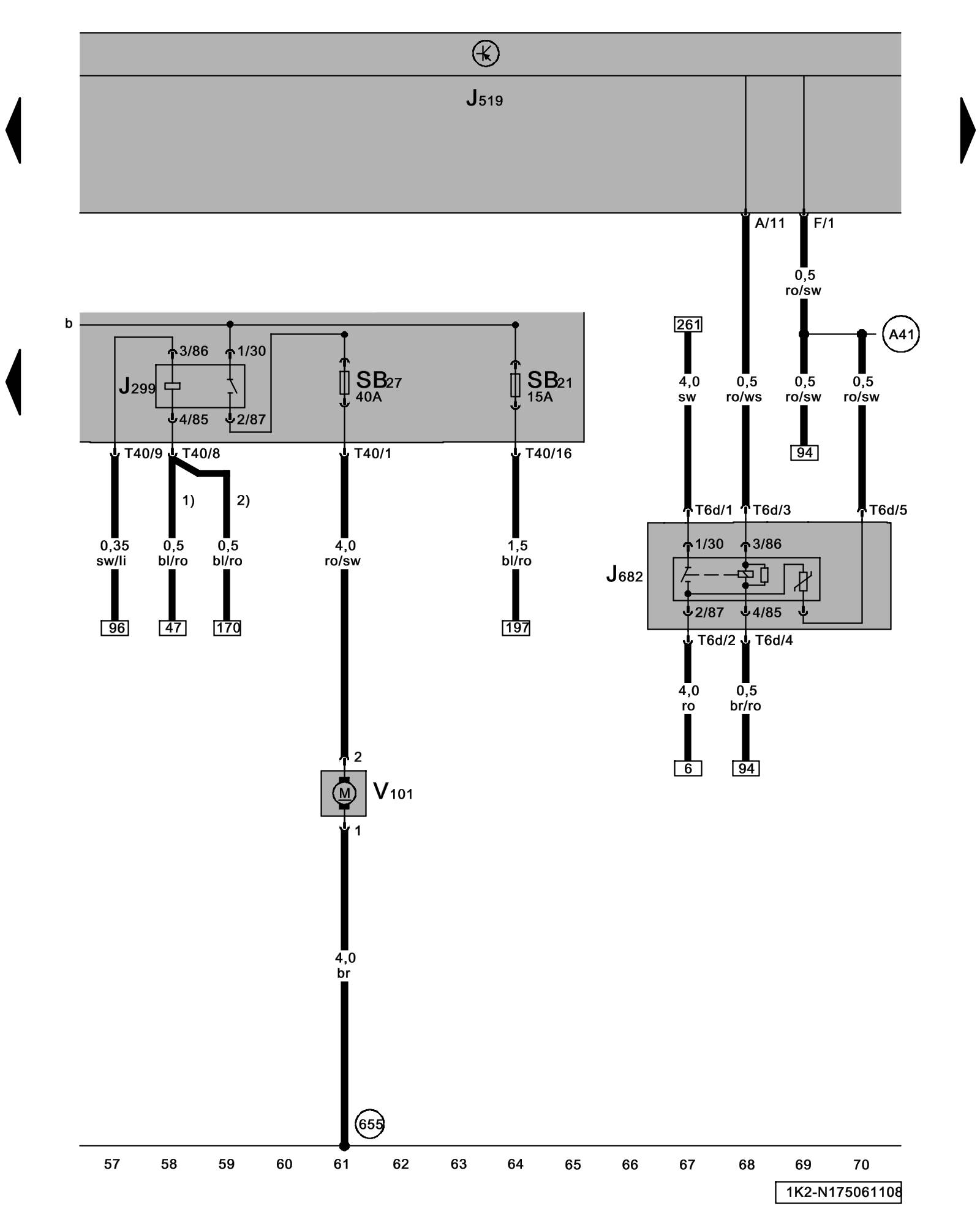

Diagram 175/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Secondary Air Injection (AIR) Pump Relay, Vehicle Electrical System Control Module, Power Supply Relay (terminal 50)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J299 - Secondary Air Injection (AIR) Pump Relay

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J682 - Power Supply Relay (terminal 50) Locations

SB21 - Fuse 21 (on fuse panel B)

SB27 - Fuse 27 (on fuse panel B)

T6d - 6-Pin Connector

T40 - 40-Pin Connector

V101 - Secondary Air Injection (AIR) Pump Motor Locations

(A41) - Plus Connection (50) (in instrument panel wiring harness)

(655) - Ground Connection (on left headlamp)

1) - Through December 2008

2) - From December 2008
