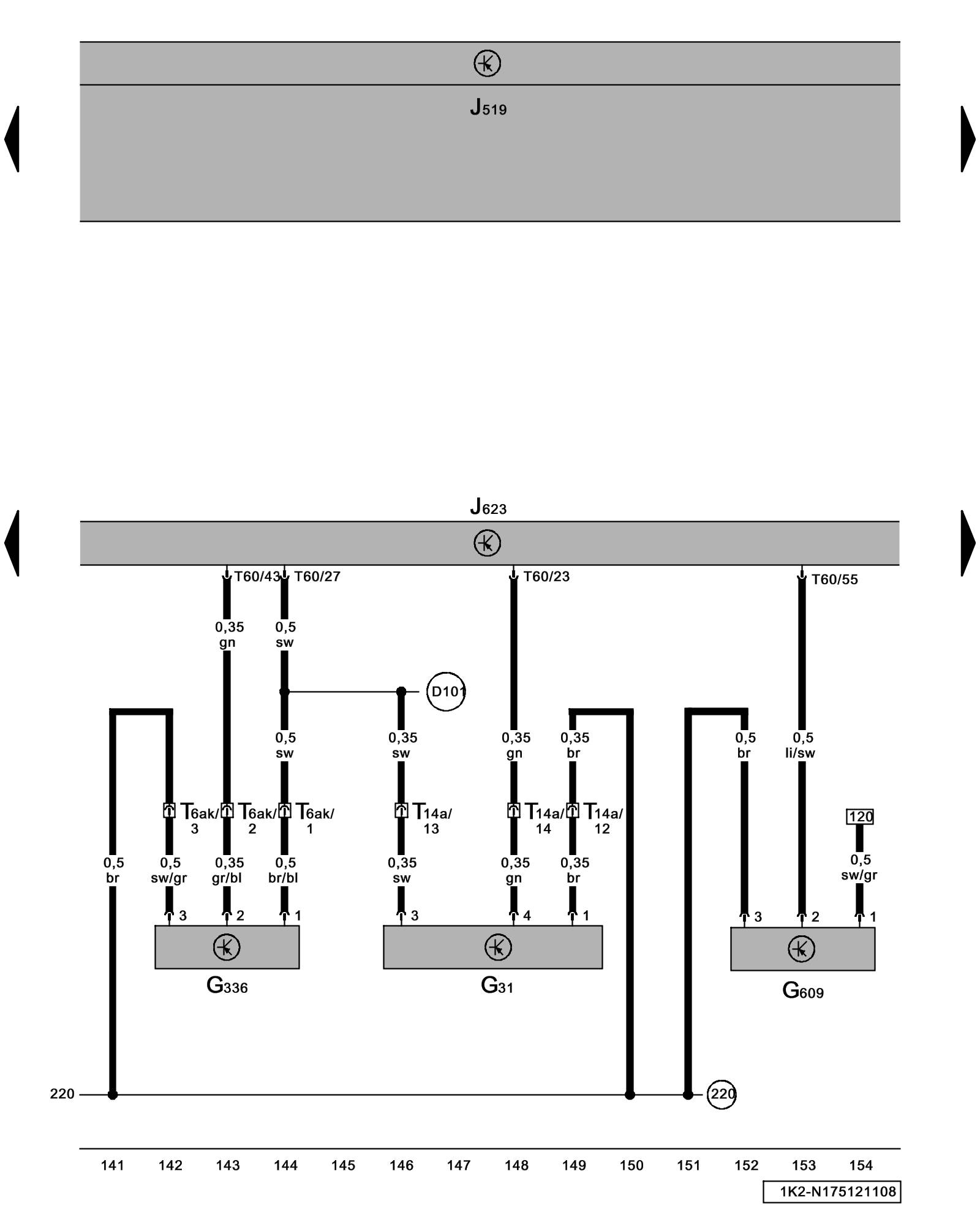

Diagram 175/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine Control Module (ECM), Charge Air Pressure Sensor, Intake Manifold Runner Position Sensor, Secondary Air Injection Sensor 1





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G31 - Charge Air Pressure Sensor Locations

G336 - Intake Manifold Runner Position Sensor 2.0L BPY, CCTA and CBFA

G609 - Secondary Air Injection Sensor 1 Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J623 - Engine Control Module (ECM) Locations

T6ak - 6-Pin Connector

T14a - 14-Pin Connector

T60 - 60-Pin Connector

(220) - Sensor Ground Connection (in engine compartment wiring harness)

(D101) - Connection 1 (in engine compartment wiring harness)
