Diagram 18/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

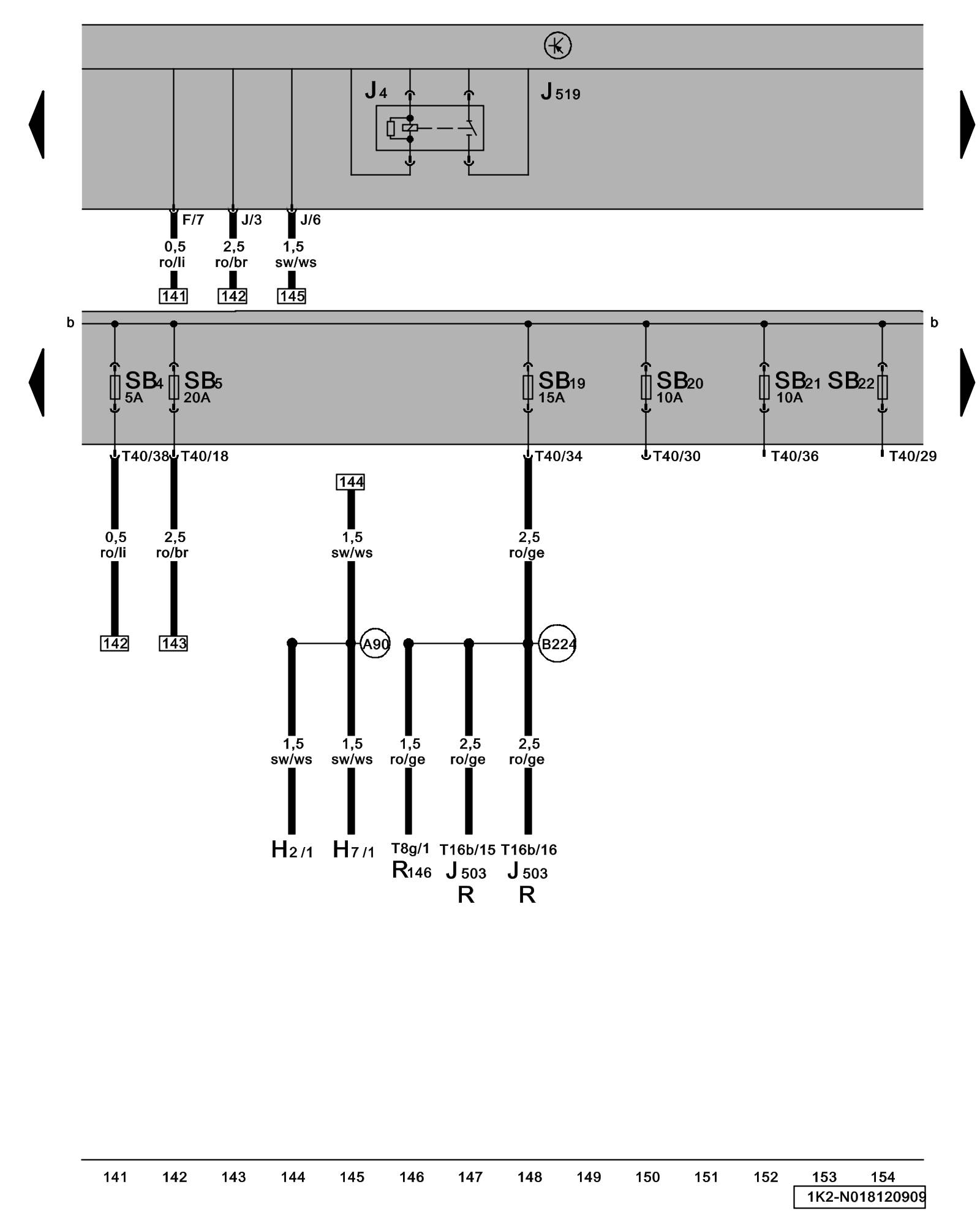

Horn Relay, Vehicle Electrical System Control Module, Fuses SB4, SB5, SB19, SB20, SB21, SB22





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

H2 - High Tone Horn Locations

H7 - Low Tone Horn Locations

J4 - Horn Relay Locations

J503 - Radio/Navigation Display Control Module Radio Navigation System Component Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

R - Radio Sound System Component Locations

R146 - Satellite Radio Antenna Systems Overview

SB4 - Fuse 4 (in fuse panel)

SB5 - Fuse 5 (in fuse panel)

SB19 - Fuse 19 (in fuse panel)

SB20 - Fuse 20 (in fuse panel)

SB21 - Fuse 21 (in fuse panel)

SB22 - Fuse 22 (in fuse panel)

T8g - 8-Pin Connector

T16b - 16-Pin Connector

T40 - 40-Pin Connector

(A90) - Connection (two-tone horn), in instrument panel wiring harness

(B224) - Connection 1 (Radio) (interior wiring harness)
