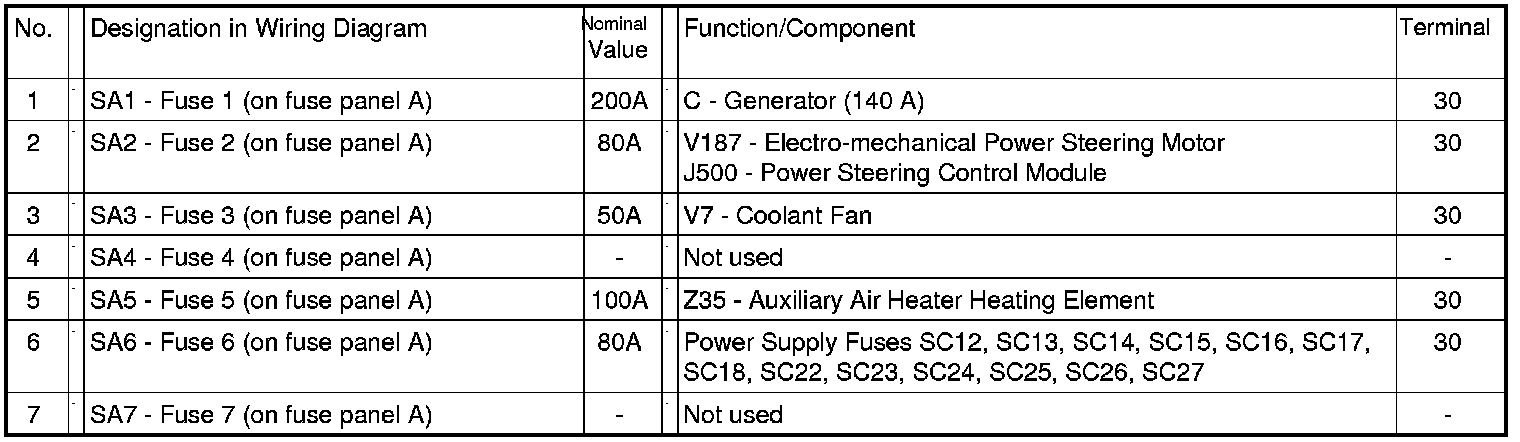

Fuses (SA) On Fuse Panel, On Electronics Box, Engine Code BPY, from July 2006







Fuses in engine compartment

Fuses (SA) on fuse panel, on electronics box, engine code BPY, from July 2006
