FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Volkswagen >> 2008 >> Jetta GLI (1K2) L4-2.0L Turbo (BPY) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Locations >> Fuses (SA) On Fuse Panel, On Electronics Box High, Engine Code BPY, from May 2005

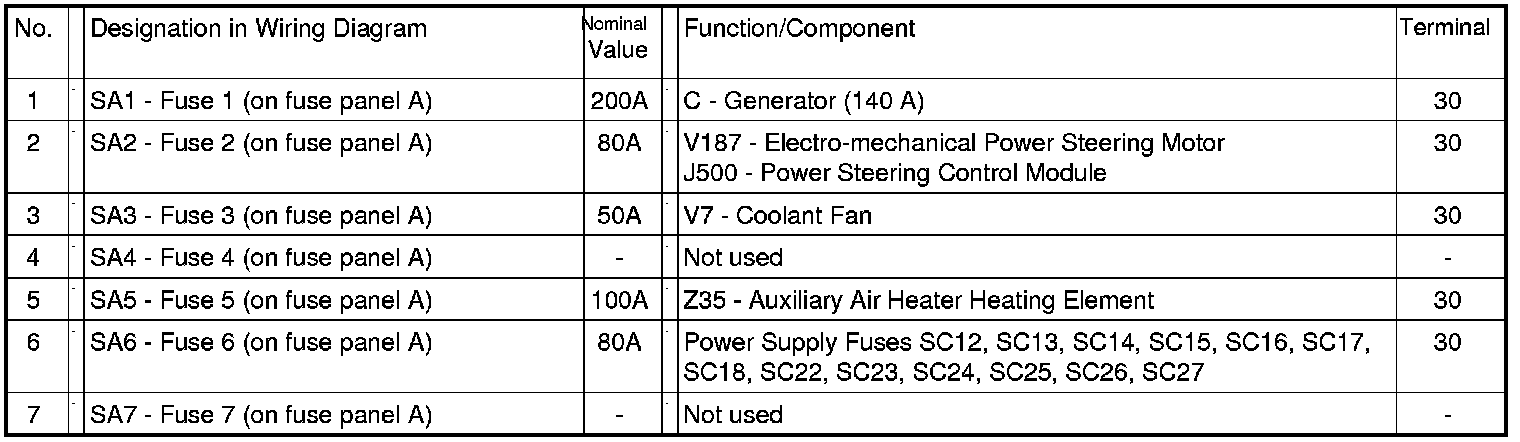

Fuses (SA) On Fuse Panel, On Electronics Box High, Engine Code BPY, from May 2005







Fuses in engine compartment

Fuses (SA) on fuse panel, on electronics box High, engine code BPY, from May 2005
