Fuses (SA) On Fuse Panel, On Electronics Box High, Engine Code BPY, from July 2007







Fuses in engine compartment

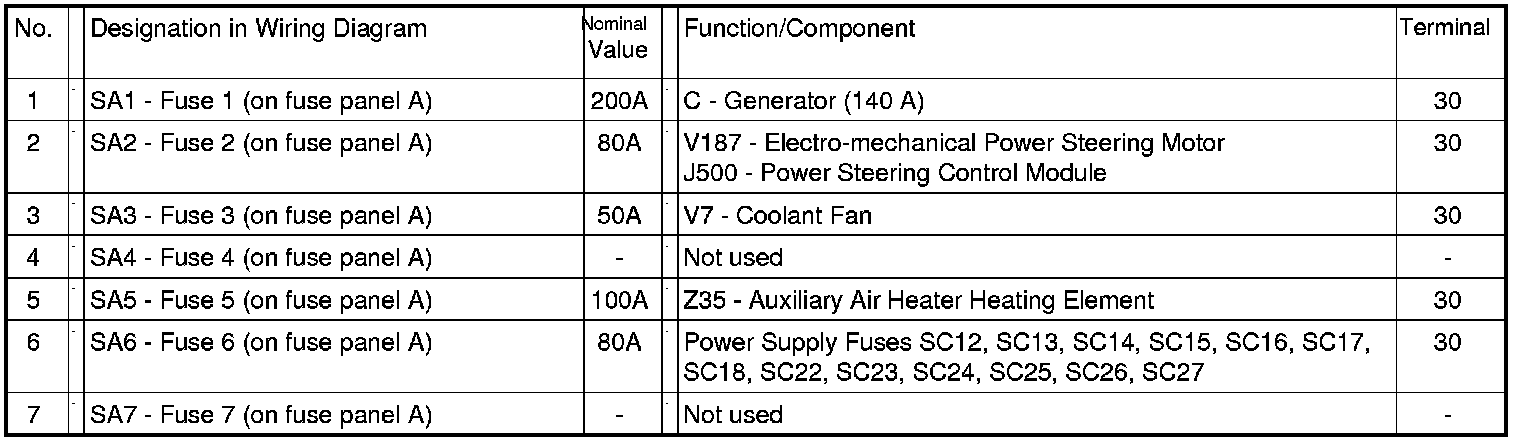

Fuses (SA) on fuse panel, on electronics box High, engine code BPY, from July 2007
