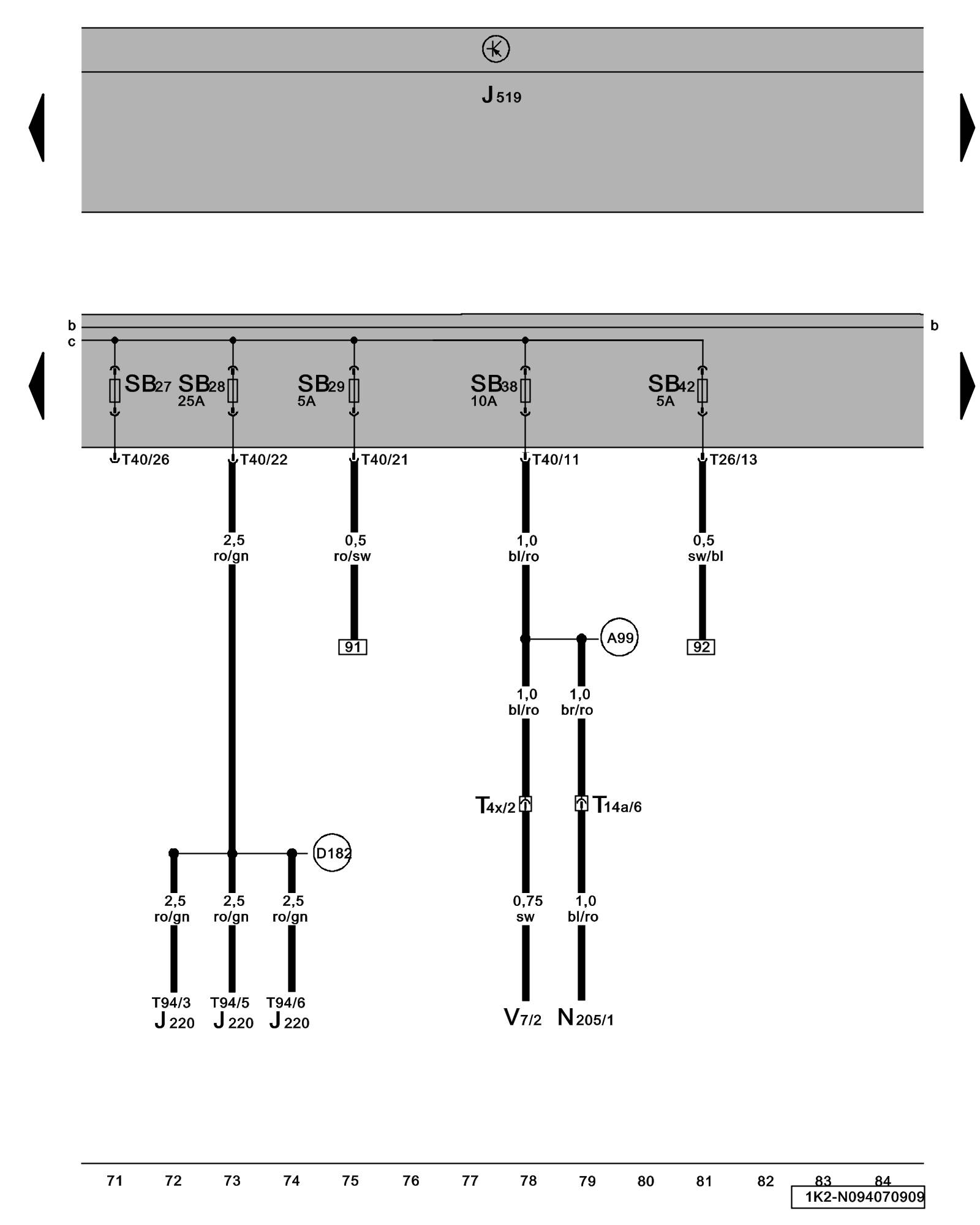

Diagram 94/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses SB on fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J220 - Motronic Engine Control Module (ECM)

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

N205 - Camshaft Adjustment Valve 1 Locations

SB27 - Fuse 27 (on fuse panel B)

SB28 - Fuse 28 (on fuse panel B)

SB29 - Fuse 29 (on fuse panel B)

SB38 - Fuse 38 (on fuse panel B)

SB42 - Fuse 42 (on fuse panel B)

T4x - 4-Pin Connector

T14a - 14-Pin Connector

T26 - 26-Pin Connector

T40 - 40-Pin Connector

T94 - 94-Pin Connector

V7 - Coolant Fan Locations

(A99) - Connection 1 (87) (in instrument panel wiring harness)

(D182) - Connection 3 (87a) (in engine wiring harness)
