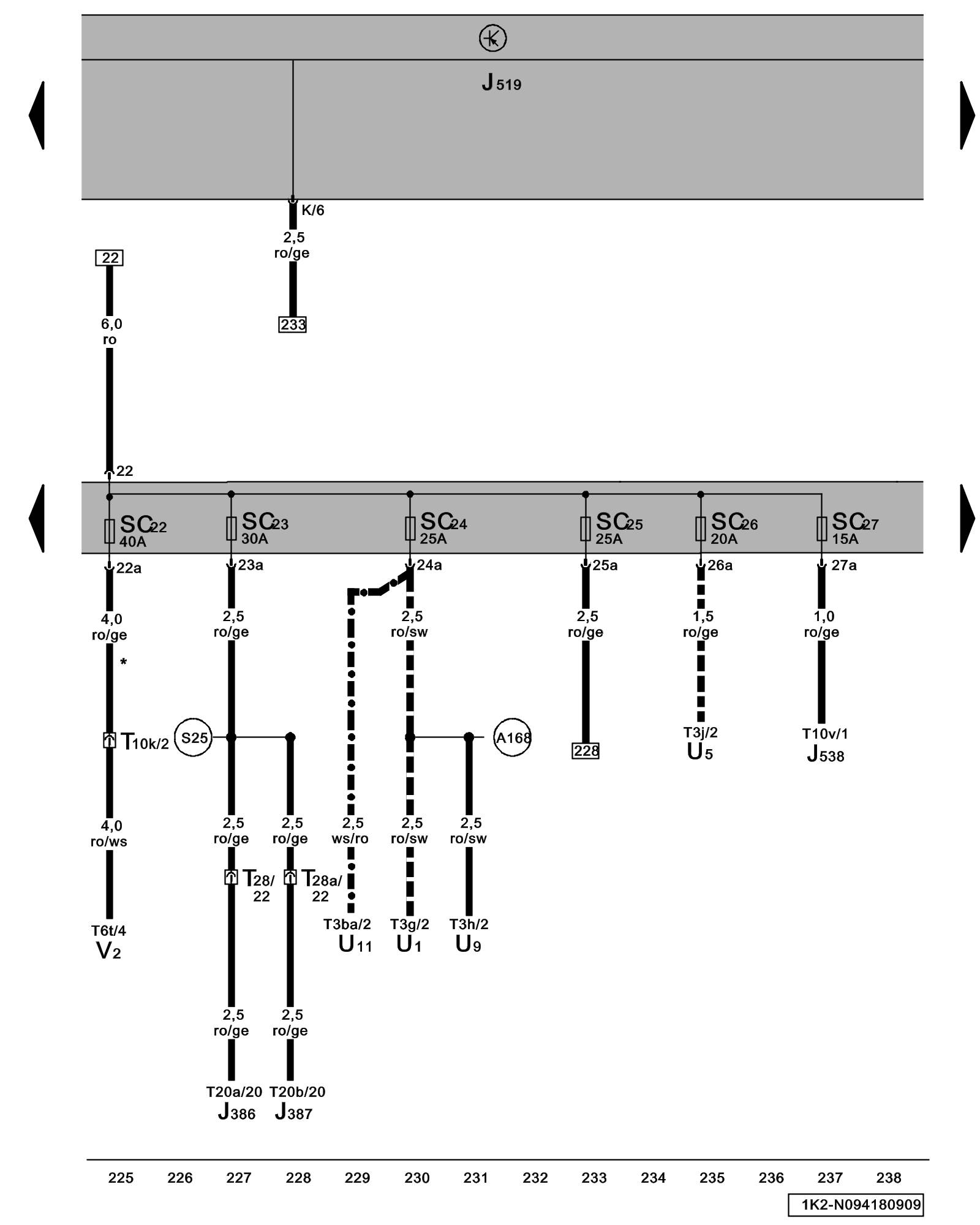

Diagram 94/18 (Tracks 225-238)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Fuses SC on fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J386 - Driver's Door Control Module Component Locations

J387 - Front Passenger's Door Control Module Component Locations Central Locking / Anti-Theft Systems

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J538 - Fuel Pump (FP) Control Module Locations

SC22 - Fuse 22 (on fuse panel C) Locations

SC23 - Fuse 23 (on fuse panel C) Locations

SC24 - Fuse 24 (on fuse panel C) Locations

SC25 - Fuse 25 (on fuse panel C) Locations

SC26 - Fuse 26 (on fuse panel C) Locations

SC27 - Fuse 27 (on fuse panel C) Locations

T3g - 3-Pin Connector

T3h - 3-Pin Connector

T3j - 3-Pin Connector

T3ba - 3-Pin Connector

T6t - 6-Pin Connector

T10k - 10-Pin Connector

T10v - 10-Pin Connector

T20a - 20-Pin Connector

T20b - 20-Pin Connector

T28 - 28-Pin Connector

T28a - 28-Pin Connector

U1 - Cigarette Lighter

U5 - 12 V Socket

U9 - Rear Cigarette Lighter

U11 - Rear Cigarette Lighter

V2 - Fresh Air Blower Climatic (Manual Climate Control) Heating and A/C System Components Overview

(A168) - Plus Connection 4 (30a) (in instrument panel wiring harness)

(S25) - Plus Connection (30a) (in central locking system wiring harness)

* - Vehicles with Climatronic only

** - through November 2005

-•- - from December 2005
