Diagram 94/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

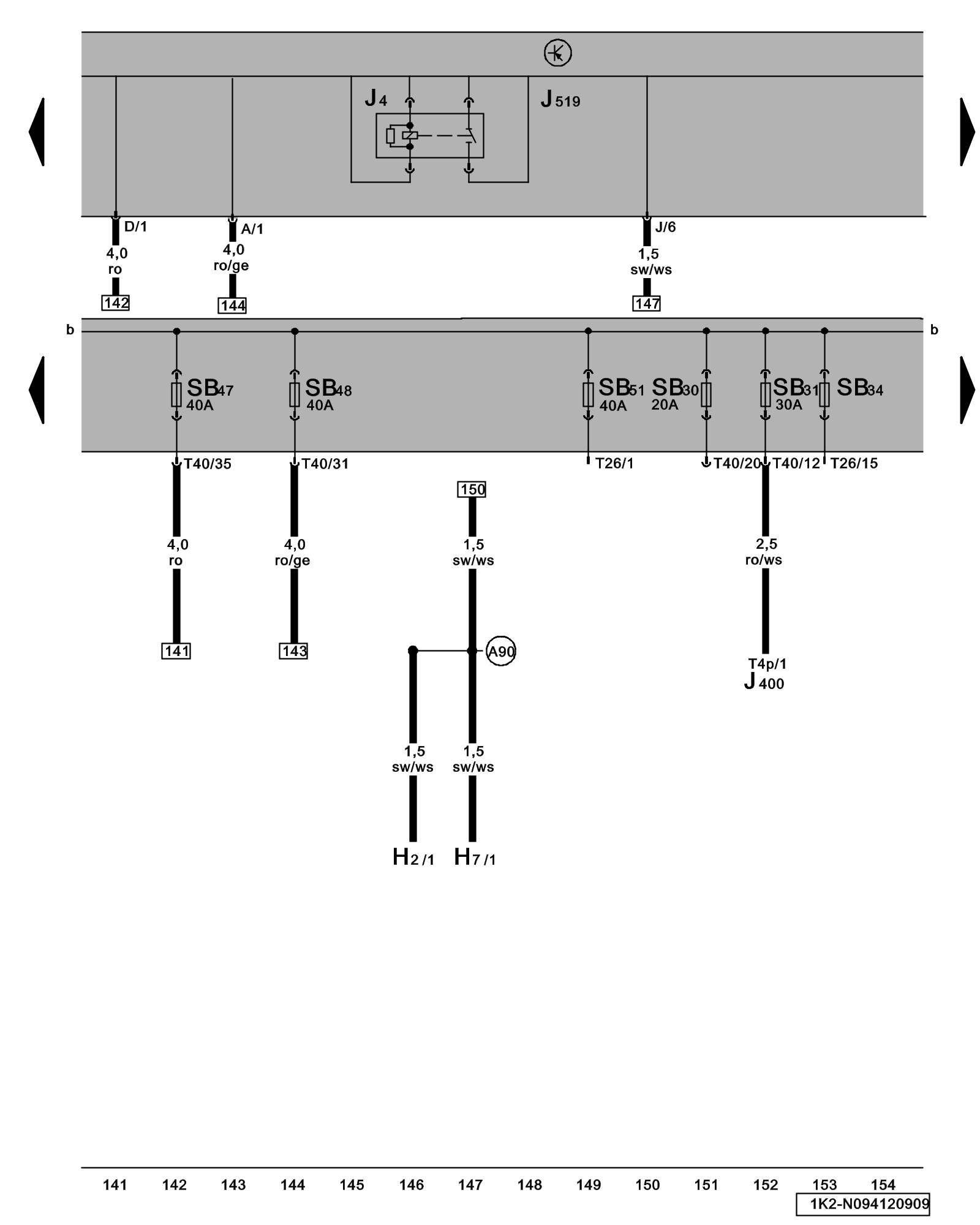

Horn Relay, Vehicle Electrical System Control Module, Fuses SB on fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

H2 - High Tone Horn Locations

H7 - Low Tone Horn Locations

J4 - Horn Relay Locations

J400 - Wiper Motor Control Module

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

SB30 - Fuse 30 (on fuse panel B)

SB31 - Fuse 31 (on fuse panel B)

SB34 - Fuse 34 (on fuse panel B)

SB47 - Fuse 47 (on fuse panel B)

SB48 - Fuse 48 (on fuse panel B)

SB51 - Fuse 51 (on fuse panel B)

T4p - 4-Pin Connector

T26 - 26-Pin Connector

T40 - 40-Pin Connector

(A90) - Dual-tone Horn Connection (in instrument panel wiring harness)

Previous Diagram 94/11 (Tracks 127-140)

Next Diagram 94/13 (Tracks 155-168)
