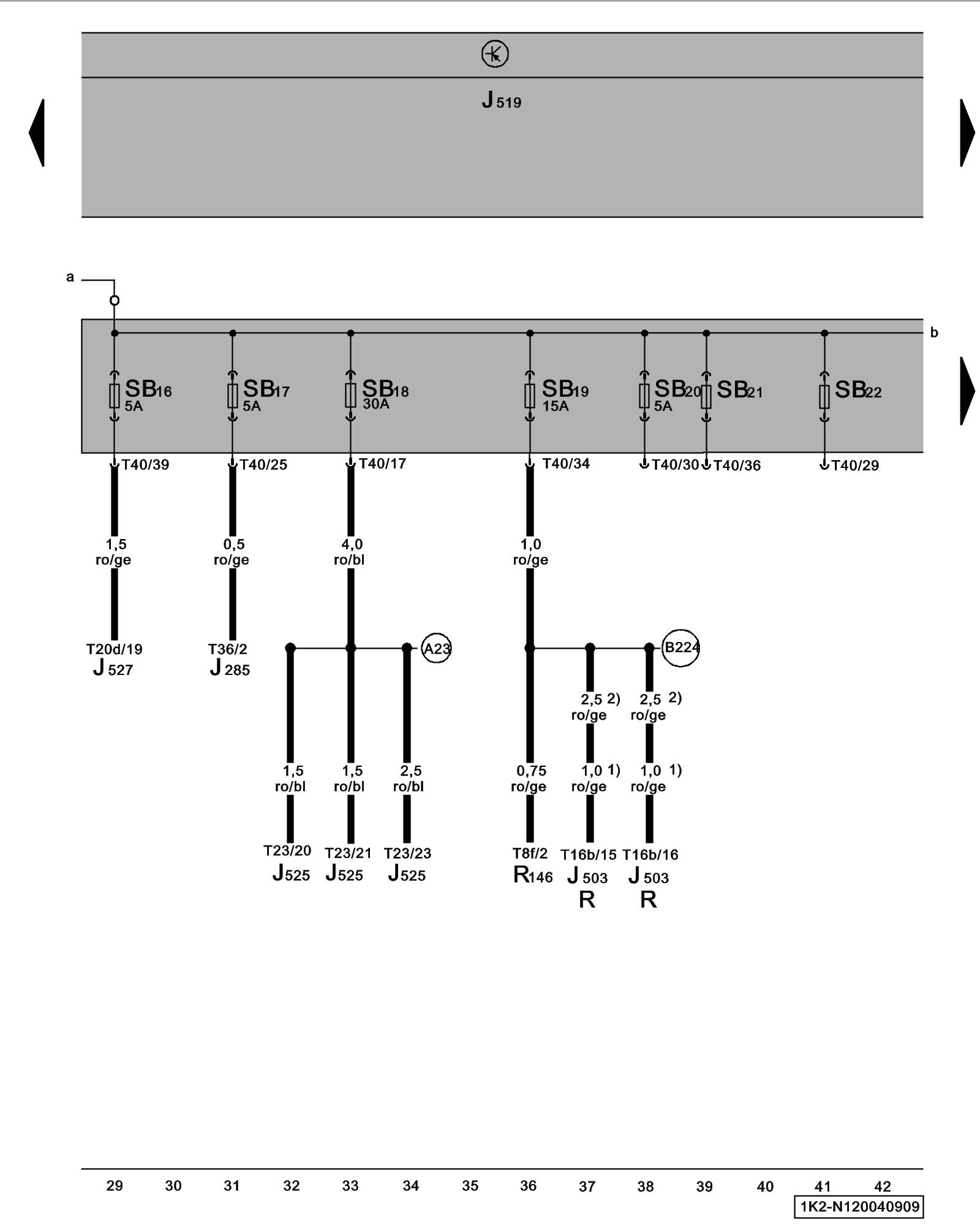

Diagram 120/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses SB on fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument Cluster Control Module Component Locations Locations

J503 - Radio/Navigation Display Unit Control Module Radio Navigation System Component Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J525 - Digital Sound System Control Module Premium Sound System Component Locations

J527 - Steering Column Electronic Systems Control Module Component Locations Locations

R - Radio Sound System Component Locations

R146 - Satellite Radio Antenna Systems Overview

SB16 - Fuse 16 (on fuse panel B)

SB17 - Fuse 17 (on fuse panel B)

SB18 - Fuse 18 (on fuse panel B)

SB19 - Fuse 19 (on fuse panel B)

SB20 - Fuse 20 (on fuse panel B)

SB21 - Fuse 21 (on fuse panel B)

SB22 - Fuse 22 (on fuse panel B)

T8f - 8-Pin Connector

T16b - 16-Pin Connector

T20d - 20-Pin Connector

T23 - 23-Pin Connector

T36 - 36-Pin Connector

T40 - 40-Pin Connector

(A23) - Connection (30al) (in instrument panel wiring harness)

(B224) - Radio Connection 1 (in interior wiring harness)

1) - Through June 2007

2) - From July 2007
