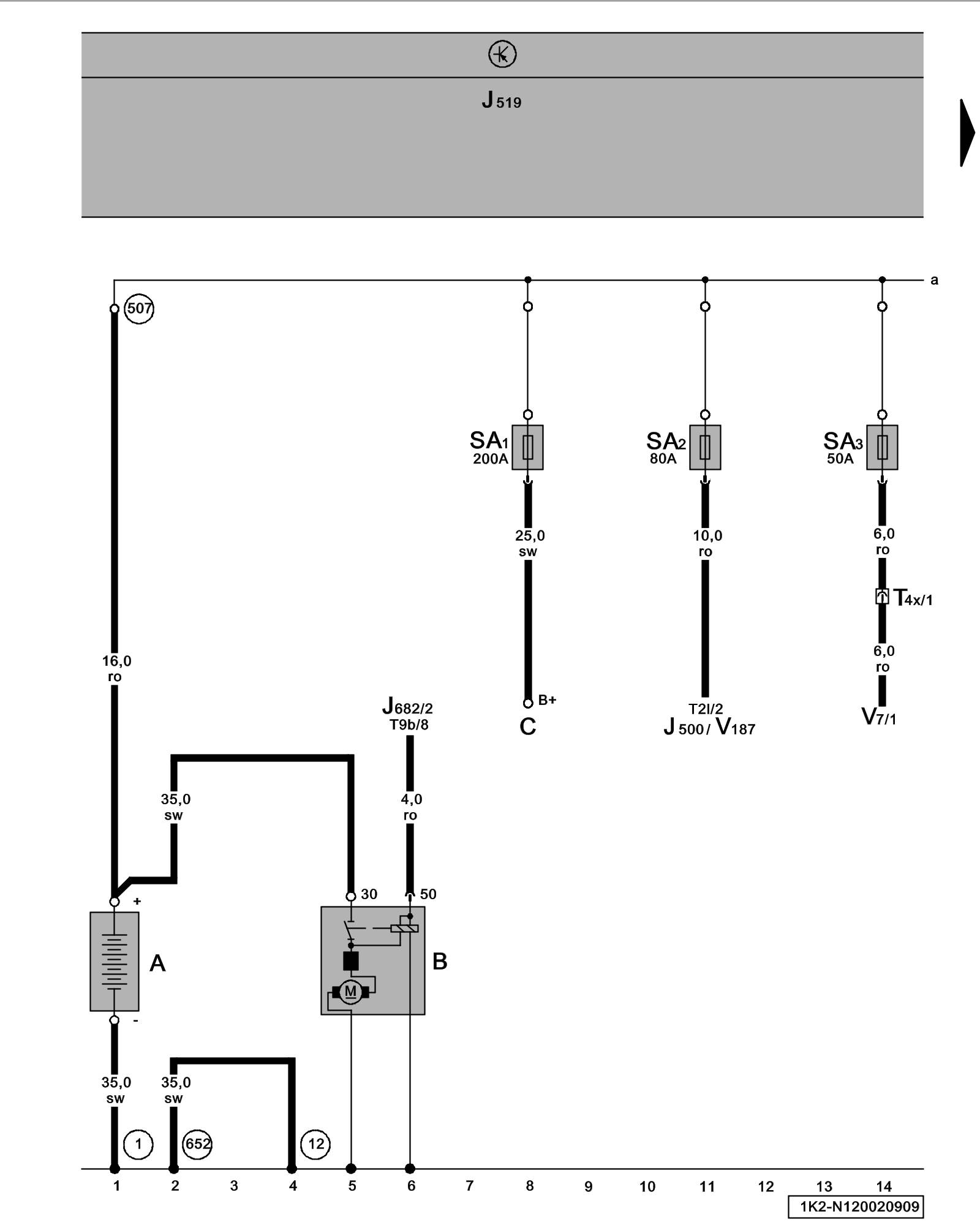

Diagram 120/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Battery, Starter, Fuses SA on fuse panel A





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

C - Generator (GEN)

J500 - Power Steering Control Module Power Steering Control Module -J500-

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J682 - Power Supply Relay (terminal 50) Locations

SA1 - Fuse 1 (on fuse panel A)

SA2 - Fuse 2 (on fuse panel A)

SA3 - Fuse 3 (on fuse panel A)

T2l - Double Connector

T4x - 4-Pin Connector

T9b - 9-Pin Connector

V7 - Coolant Fan Locations

V187 - Electro-mechanical Power Steering Motor Electromechanical Steering Gear Assembly Overview - Generation 2

(1) - Ground strap, battery to body

(12) - Ground Connection (in engine compartment, left)

(507) - Threaded Connection - terminal 30 (on battery fuse holder)

(652) - Transmission/Engine Ground Connection

Next Diagram 120/3 (Tracks 15-28)
