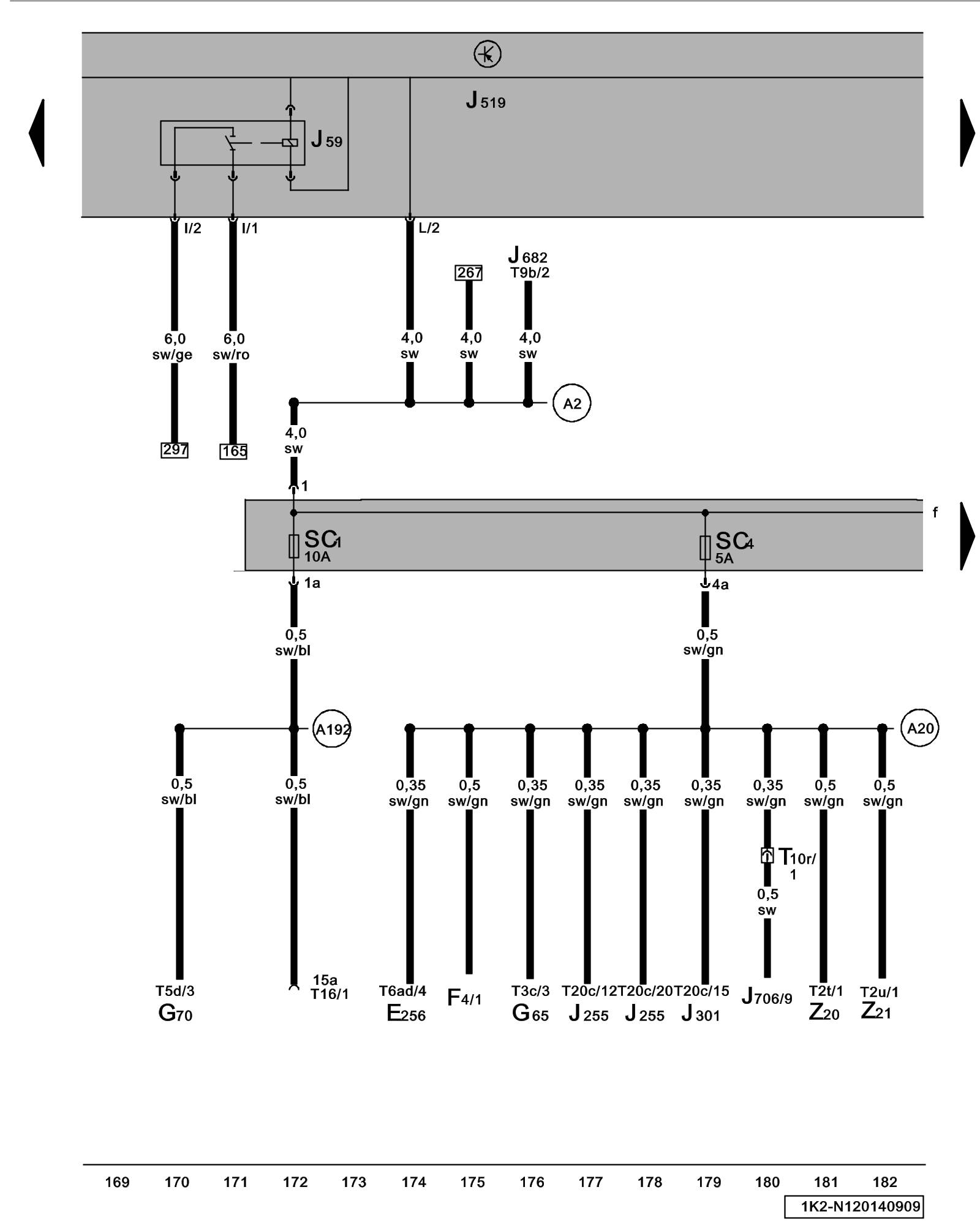

Diagram 120/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Load Reduction Relay, Vehicle Electrical System Control Module, Fuses (on fuse panel C)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E256 - ASR/ESP Button

F4 - Back-Up Light Switch Direct Shift Gearbox 02E (DSG)

G65 - High Pressure Sensor Locations

G70 - Mass Air Flow (MAF) Sensor Locations

J59 - Load Reduction Relay Locations

J255 - Climatronic Control Module Climatronic (Automatic Climate Control) Heating and A/C Components Overview

J301 - A/C Control Module Climatic (Manual Climate Control) Heating and A/C System Components Overview

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J682 - Power Supply Relay (terminal 50) Locations

J706 - Seat Occupied Recognition Control Module Passive Occupant Detection System

SC1 - Fuse 1 (on fuse panel C) Locations

SC4 - Fuse 4 (on fuse panel C) Locations

T2t - Double Connector

T2u - Double Connector

T3c - 3-Pin Connector

T5d - 5-Pin Connector

T6ad - 6-Pin Connector

T9b - 9-Pin Connector

T10r - 10-Pin Connector

T16 - 16- Pin Connector, Data Link Connector (DLC), below steering column, left

T20c - 20-Pin Connector

Z20 - Left Washer Nozzle Heater

Z21 - Right Washer Nozzle Heater

(A2) - Plus Connection (15) (in instrument panel wiring harness)

(A20) - Plus Connection (15a) (in instrument panel wiring harness)

(A192) - Plus Connection 3 (15a) (in instrument panel wiring harness)
