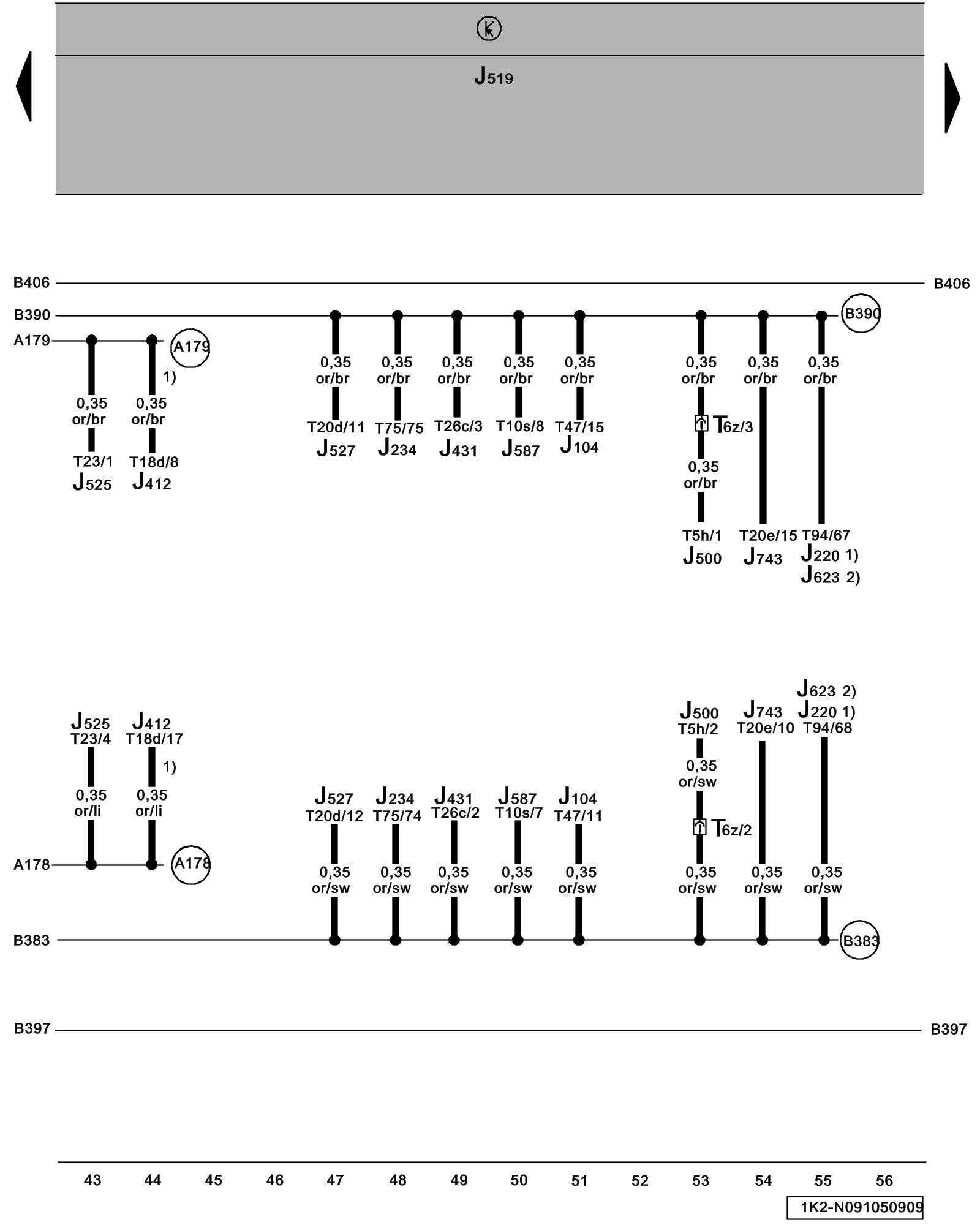

Diagram 91/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


CAN-Bus connections, Control Modules





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J104 - ABS Control Module ABS Control Module (models with ABS / EDL/ASR) -J104-

J220 - Motronic Engine Control Module (ECM)

J234 - Airbag Control Module Component Locations Airbag Control Module -J234-

J412 - Operating Electronics and Telephone Control Module Telematics System Overview

J431 - Headlamp Range Control Module Locations

J500 - Power Steering Control Module Power Steering Control Module -J500-

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J525 - Digital Sound System Control Module Premium Sound System Component Locations

J527 - Steering Column Electronic Systems Control Module Component Locations Locations

J587 - Selector Lever Sensor System Control Module Direct Shift Gearbox 02E (DSG)

J623 - Engine Control Module (ECM) Locations

J743 - Direct Shift Gearbox (DSG) Mechatronic

T5h - 5-Pin Connector

T6z - 6-Pin Connector

T10s - 10-Pin Connector

T18d - 18-Pin Connector

T20d - 20-Pin Connector

T20e - 20-Pin Connector

T23 - 23-Pin Connector

T26c - 26-Pin Connector

T47 - 47-Pin Connector

T75 - 75-Pin Connector

T94 - 94-Pin Connector

(A178) - Infotainment High-Bus Connection (in instrument panel wiring harness)

(A179) - Infotainment Lo-bus Connection (in instrument panel wiring harness)

(B383) - Powertrain CAN-Bus High Connection 1 (in main wiring harness)

(B390) - Powertrain CAN-Bus Low Connection 1 (in main wiring harness)

1) - Through June 2007

2) - From July 2007
