Engine, Securing on Assembly Stand

Engine, Securing on Assembly Stand

Special tools, testers and auxiliary items required

• Engine sling (2024A)

• Shop crane (VAS 6100)

• Engine and transmission holder (VAS 6095)

Secure the engine to (VAS 6095) when working on it.

Procedure

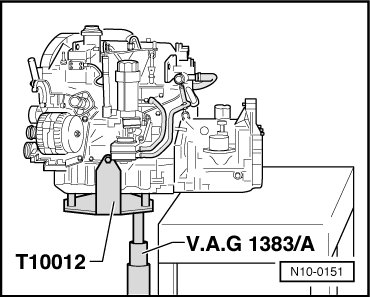

- Move the engine transmission jack (VAG 1383A) to a workbench.





- Lower the engine/transmission assembly so that transmission makes contact with the workbench.

- Remove the engine/transmission bolts.

- Separate the transmission from engine.

- Install the (2024A) as follows and lift the engine using the (VAS 6100) off of the (VAG 1383A).





Belt pulley side:

• 2nd hole of rail in position 1.

Flywheel side:

• 1st hole of rail in position 8.

CAUTION!
Use the securing pins on the hook and drifts to prevent injury and damage to the engine and vehicle.

• The peg positions on the (2024A) marked 1 to 4 face the belt pulley.

• The bores in the hole rail are counted from the hook.

- Secure the engine to the (VAS 6095).
