Cylinder Head Assembly: Tools and Equipment

Special Tools

Special tools, testers and auxiliary items required

• Drip tray (VAG 1306) or (VAS 6208)

• Spring type clip pliers (VAS 5024A)

• Polydrive bit and drive socket (T10070) or polydrive key (3452)

• Seal puller - general usage (2085)

• Adapter (2085/2)

• Assembly tool (T10071)

• Ratchet insert 1/4" (VAS 6234)

• TORX(R) bit set (VAG 1766)

• Torque wrench (5-60 Nm) (VAG 1783)

• Spark plug removal tool (3122B)

• Valve seal removal tool (3364)

• Valve stem seal driver (3365)

• Adapter (T40012)

• Valve cotter asm/disasm device (VAS 5161)

• Guide plate for FSI engine (VAS 5161/19)

• Dial gauge holder (VW 387)





• Spring type clip pliers (VAS 5024A)





• Hose clamps up to 25 mm diameter (3094)





• Puller (T40001)

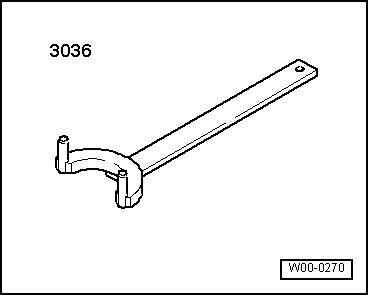

• Counter holder tool (3036)

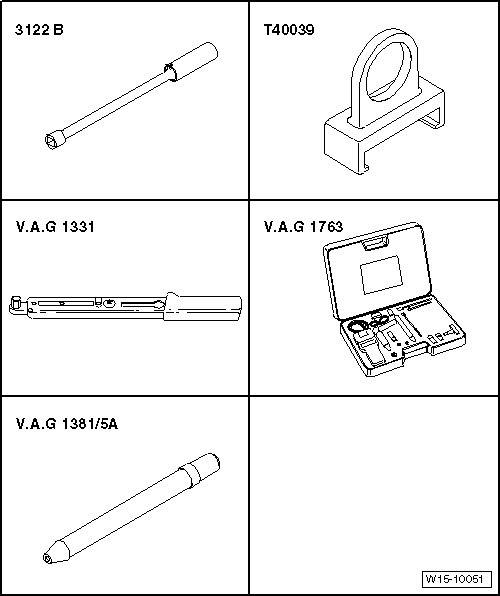

Special tools, testers and auxiliary items required

• Spark plug removal tool (3122B)

• Ignition coil puller (T40039)

• Torque wrench (5-50 Nm) (VAG 1331)

• Compression tester (VAG 1763)

• Adapter (VAG 1381/5A)





Special tools, testers and auxiliary items required

• Engine support bracket (T10339)

• Insert pad for front fender (T40045)

• Adapter (10-222A/18)

• Bracket for engine (10-222A /1)

• Engine support bridge (10-222A)

• Torque wrench (40-200 Nm) (VAG 1332)





Special tools, testers and auxiliary items required

• Socket (T40080)

• Camshaft clamp (T10252)

• Toothed belt tensioner (T10020)

• Locking pin (T10115)

• Torque wrench (40-200 Nm) (VAG 1332)
