Diagram 97/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

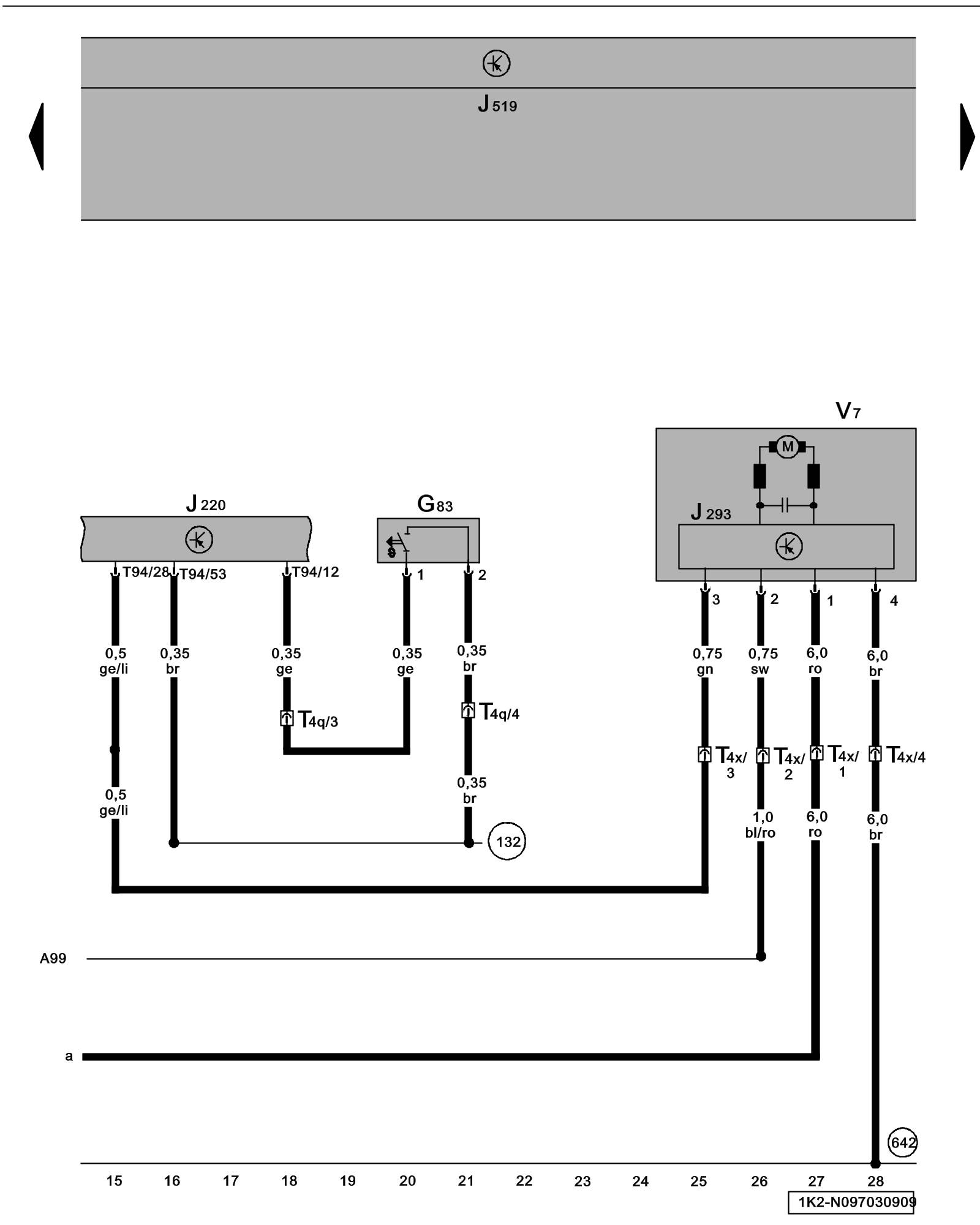

Engine Coolant Temperature (ECT) Sensor, Motronic Engine Control Module, Coolant Fan





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G83 - Engine Coolant Temperature (ECT) Sensor (on Radiator) Locations

J220 - Motronic Engine Control Module (ECM)

J293 - Coolant Fan Control (FC)Control Module Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

T4q - 4-Pin Connector

T4x - 4-Pin Connector

T94 - 121-Pin Connector

V7 - Coolant Fan Locations

(132) - Ground Connection 3 (in engine compartment wiring harness)

(642) - Ground Connection (electronic fan control)
