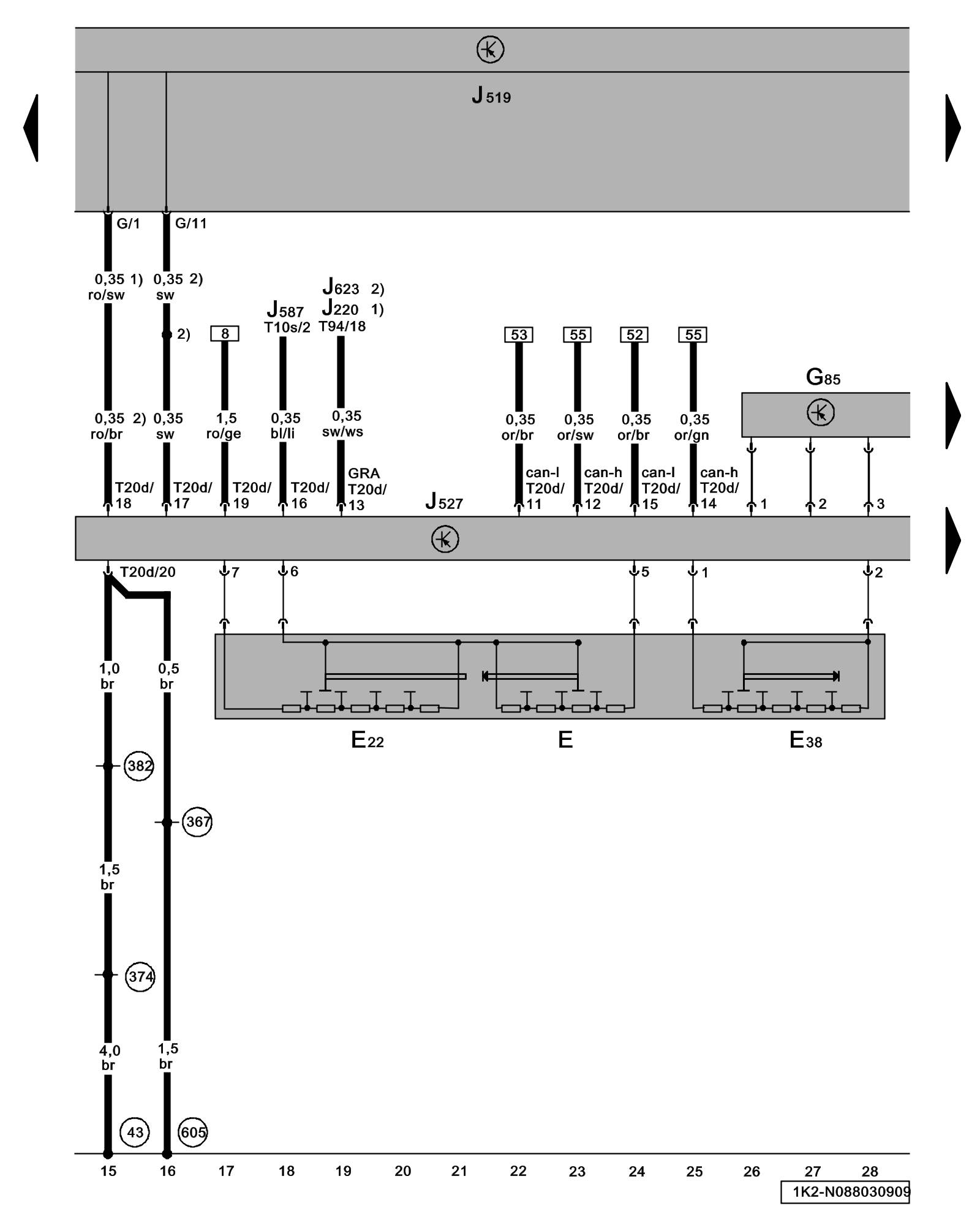

Diagram 88/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Windshield Wiper Switch, Windshield Wiper/ Washer Switch, Windshield Wiper Intermittent Regulator, Vehicle Electrical System Control Module, Steering Column Electronic Systems Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E - Windshield Wiper Switch

E22 - Windshield Wiper/Washer Switch

E38 - Windshield Wiper Intermittent Regulator

G85 - Steering Angle Sensor Locations

J220 - Motronic Engine Control Module (ECM)

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J527 - Steering Column Electronic Systems Control Module Component Locations Locations

J587 - Selector Lever Sensor System Control Module Direct Shift Gearbox 02E (DSG)

J623 - Engine Control Module (ECM) Locations

T10s - 10-Pin Connector

T20d - 20-Pin Connector, at J527

T94 - 94-Pin Connector

(43) - Ground Connection (on right lower A-pillar)

(367) - Ground Connection 2 (in main wiring harness)

(374) - Ground Connection 9 (in main wiring harness)

(382) - Ground Connection 17 (in main wiring harness)

(605) - Ground Connection (on upper steering column)

1) - Through June 2007

2) - From July 2007
