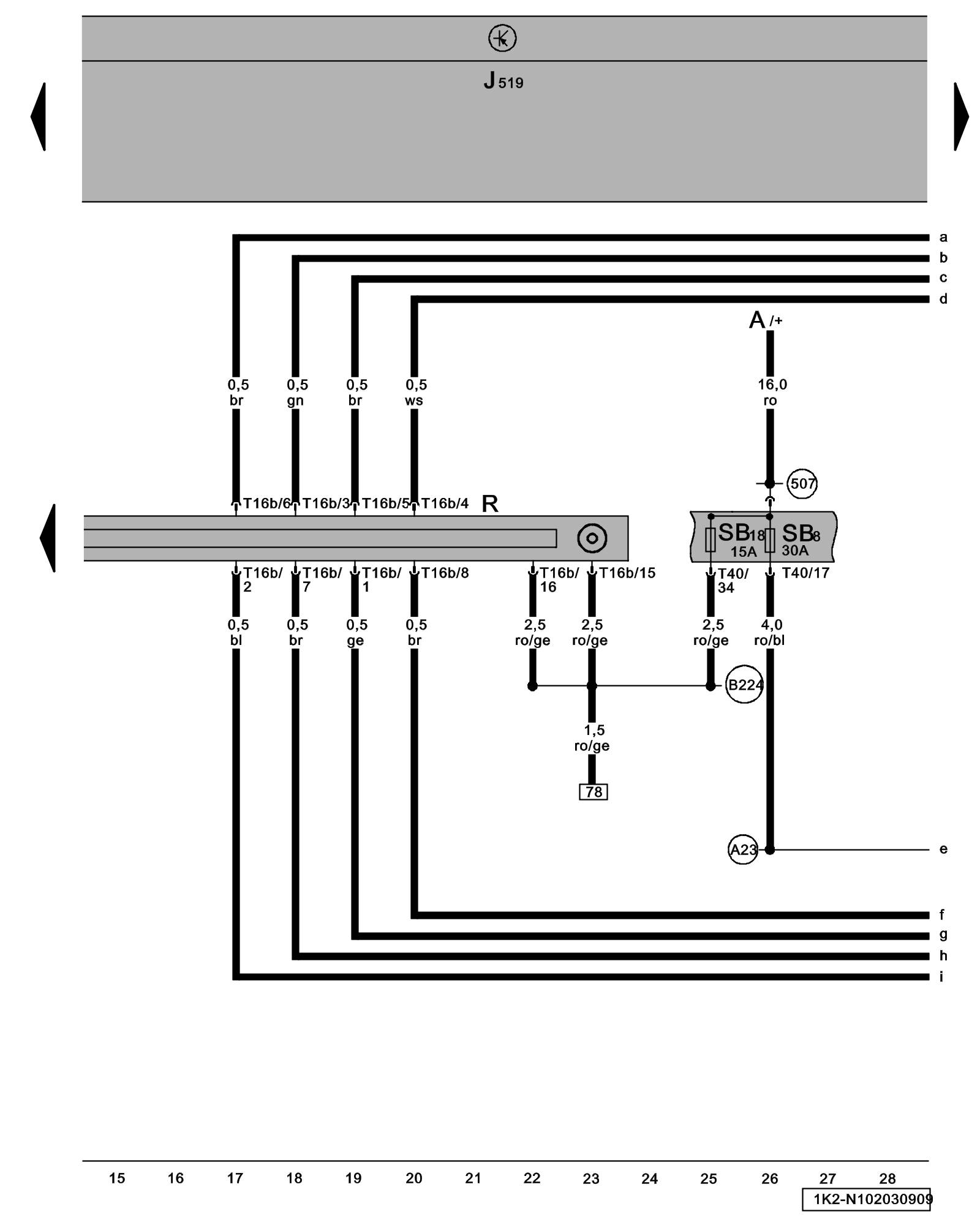

Diagram 102/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

R - Radio Sound System Component Locations

SB8 - Fuse 8 (in fuse panel)

SB18 - Fuse 18 (in fuse panel)

T16b - 16-Pin Connector

T40 - 40-Pin Connector

(507) - Threaded Connection (30) (on relay holder/battery)

(A23) - Connection (30al), in instrument panel wiring harness

(B224) - Connection 1 (Radio) (interior wiring harness)
