Diagram 82/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

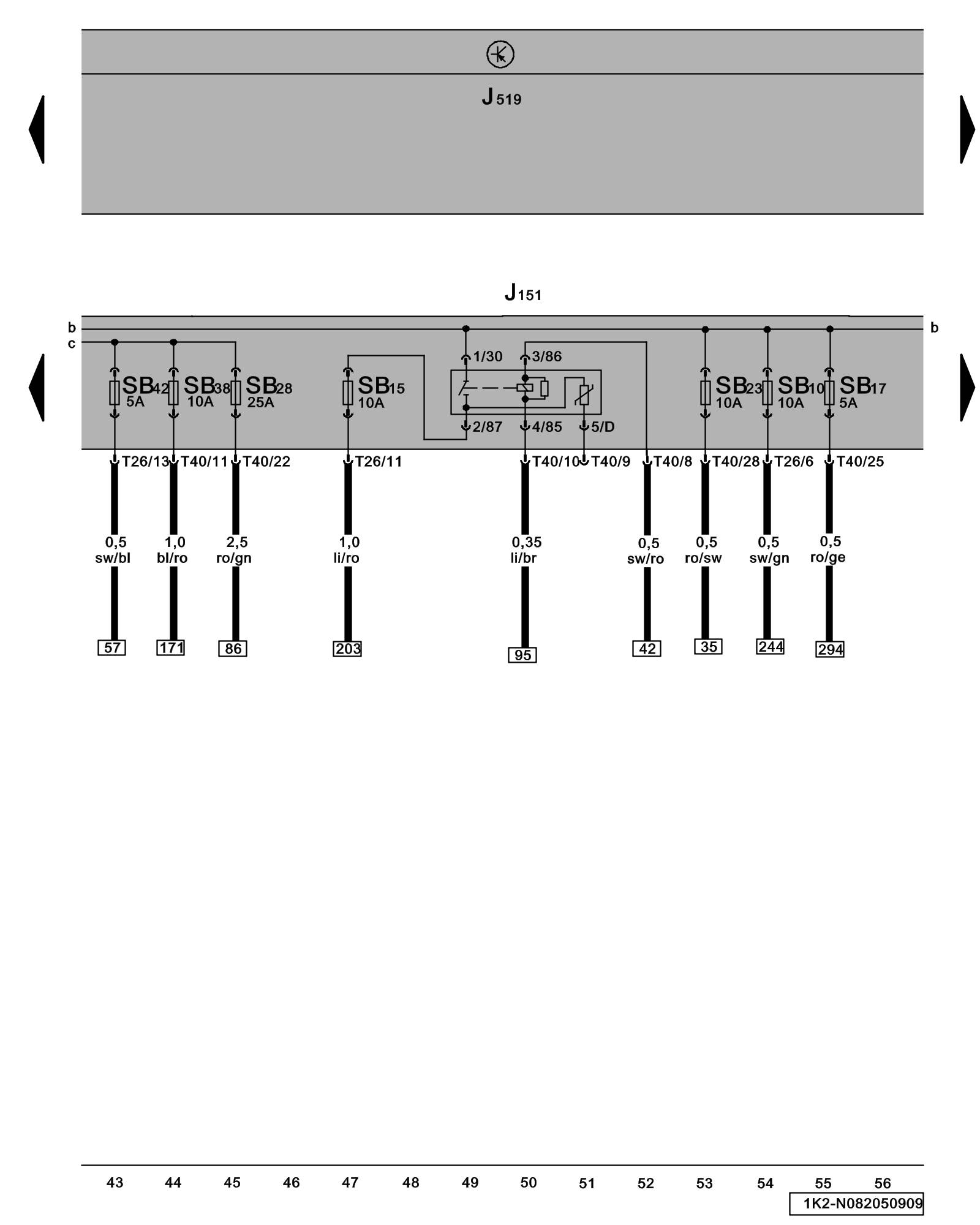

Coolant Circulation Pump Relay





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J151 - Coolant Circulation Pump Relay Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

SB10 - Fuse 10 (on fuse panel B)

SB15 - Fuse 15 (on fuse panel B)

SB17 - Fuse 17 (on fuse panel B)

SB23 - Fuse 23 (on fuse panel B)

SB28 - Fuse 28 (on fuse panel B)

SB38 - Fuse 38 (on fuse panel B)

SB42 - Fuse 42 (on fuse panel B)

T26 - 26-Pin Connector

T40 - 40-Pin Connector

Previous Diagram 82/4 (Tracks 29-42)

Next Diagram 82/6 (Tracks 57-70)
