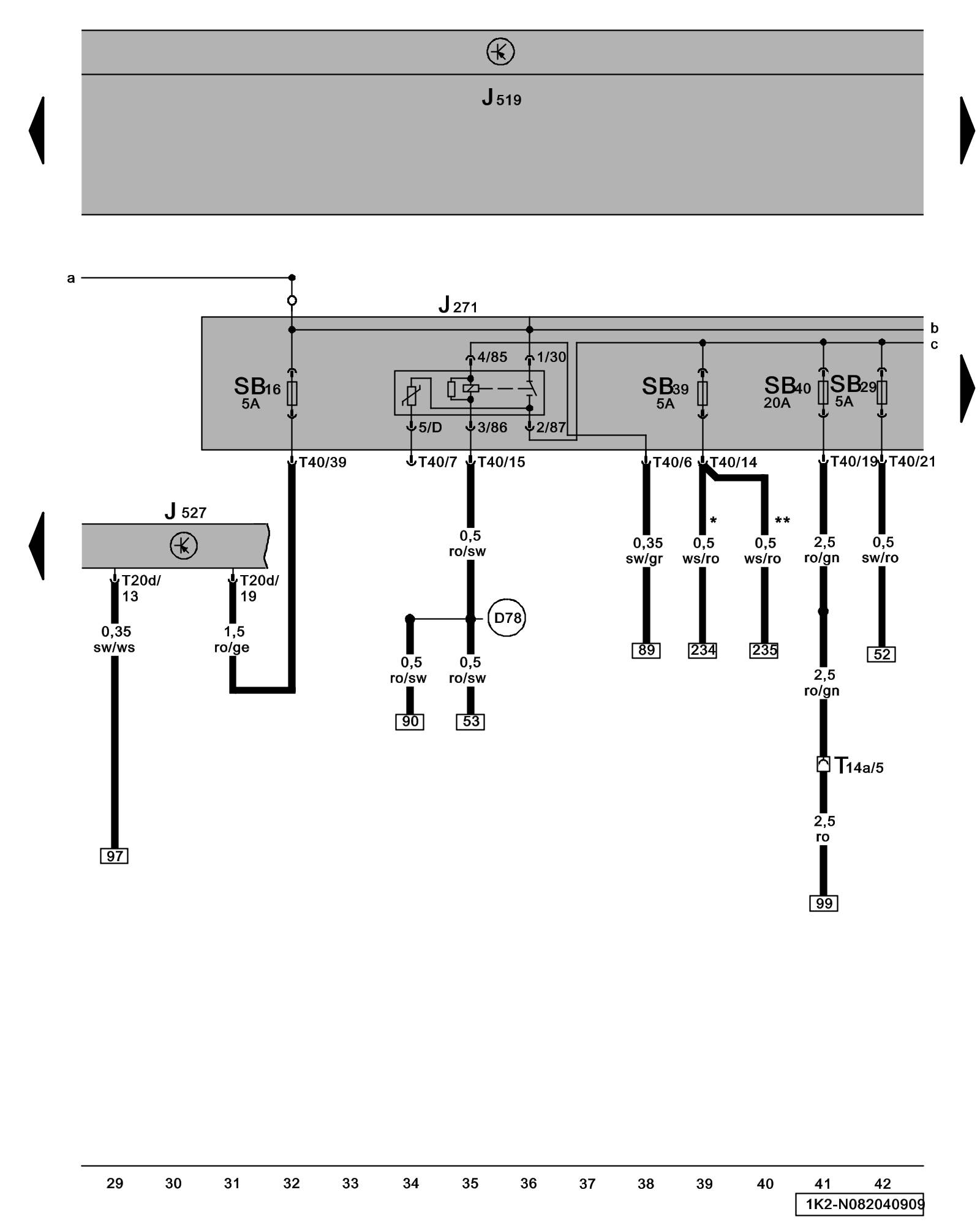

Diagram 82/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Motronic Engine Control Module (ECM) Power Supply Relay,Steering Column Electronic Systems Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J271 - Motronic Engine Control Module (ECM) Power Supply Relay Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J527 - Steering Column Electronic Systems Control Module Component Locations Locations

SB16 - Fuse 16 (on fuse panel B)

SB29 - Fuse 29 (on fuse panel B)

SB39 - Fuse 39 (on fuse panel B)

SB40 - Fuse 40 (on fuse panel B)

T14a - 14-Pin Connector

T20d - 20-Pin Connector

T40 - 40-Pin Connector

(D78) - Plus Connection 1 (30a) (in engine compartment wiring harness)

* - through November 2005

** - from December 2005
