Diagram 82/20 (Tracks 253-266)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Motronic Engine Control Module (ECM), Vehicle Electrical System Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

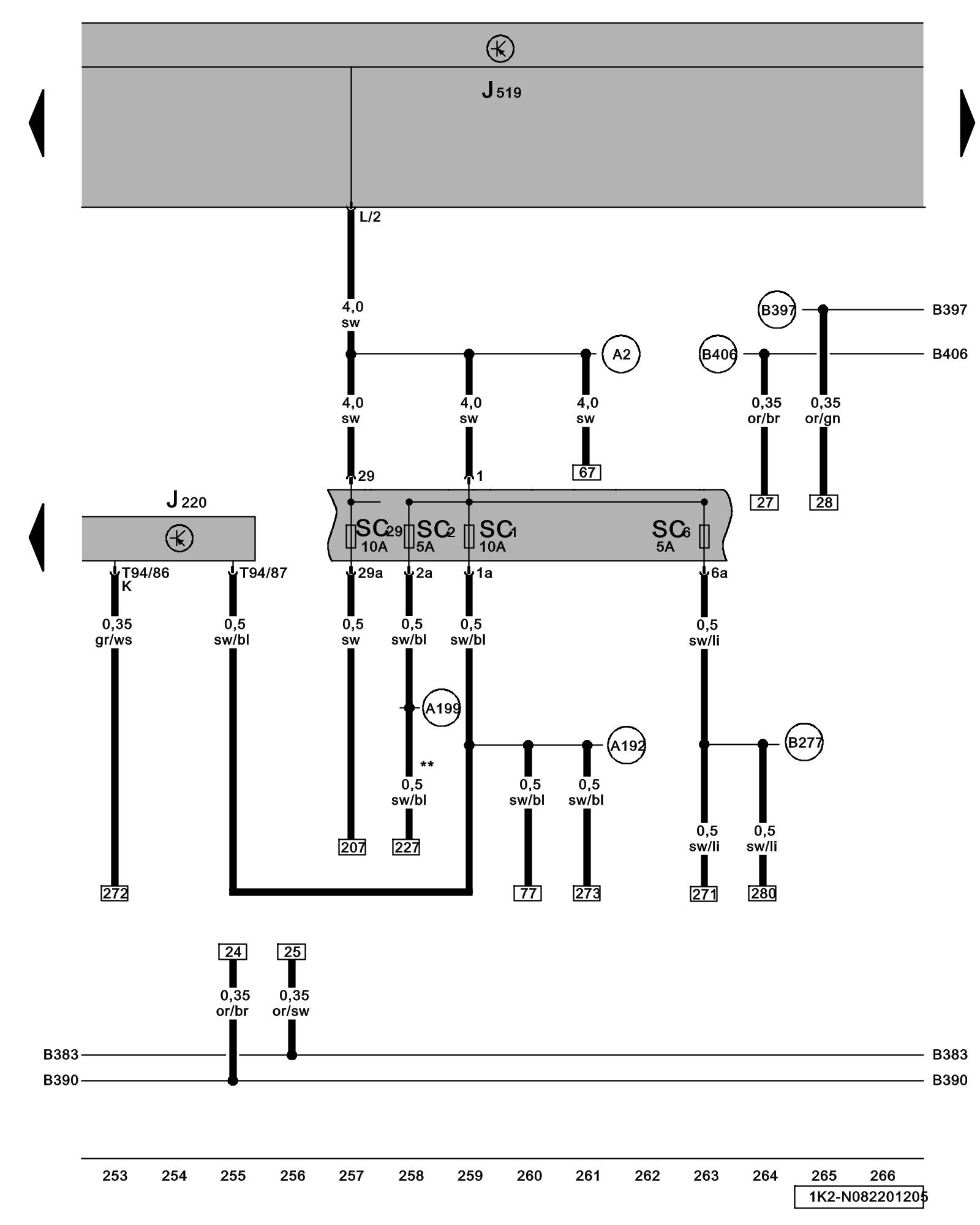

J220 - Motronic Engine Control Module (ECM)

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

SC1 - Fuse 1 (on fuse panel C) Locations

SC2 - Fuse 2 (on fuse panel C) Locations

SC6 - Fuse 6 (on fuse panel C) Locations

SC29 - Fuse 29 (on fuse panel C) Locations

T94 - 94-Pin Connector

(A2) - Plus Connection (15) (in instrument panel wiring harness)

(A192) - Plus Connection 3 (15a) (in instrument panel wiring harness)

(A199) - Plus Connection 4 (15a) (in instrument panel wiring harness)

(B277) - Plus Connection 1 (15a) (in main wiring harness)

(B397) - Comfort System CAN-Bus High Connection 1 (in main wiring harness)

(B406) - Comfort System CAN-Bus Low Connection 1 (in main wiring harness)

** - from December 2005

Previous Diagram 82/19 (Tracks 239-252)

Next Diagram 82/21 (Tracks 267-280)
