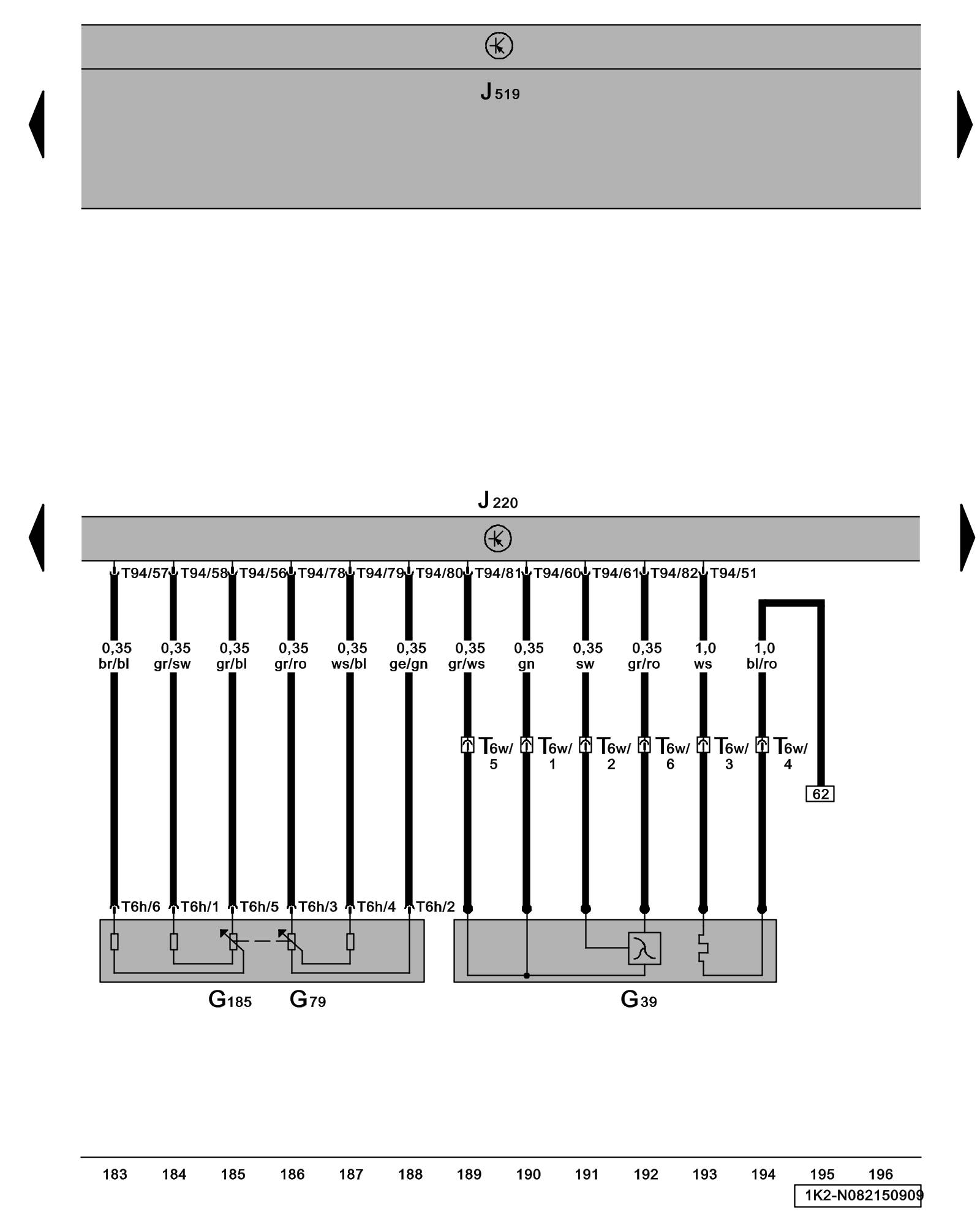

Diagram 82/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Heated Oxygen Sensor (HO2S), Throttle Position (TP) Sensor, Accelerator Pedal Position Sensor 2, Motronic Engine Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G39 - Heated Oxygen Sensor (HO2S) Locations

G79 - Throttle Position (TP) Sensor Locations

G185 - Accelerator Pedal Position Sensor 2 Locations

J220 - Motronic Engine Control Module (ECM)

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

T6h - 6-Pin Connector

T6w - 6-Pin Connector

T94 - 94-Pin Connector
