Diagram 82/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

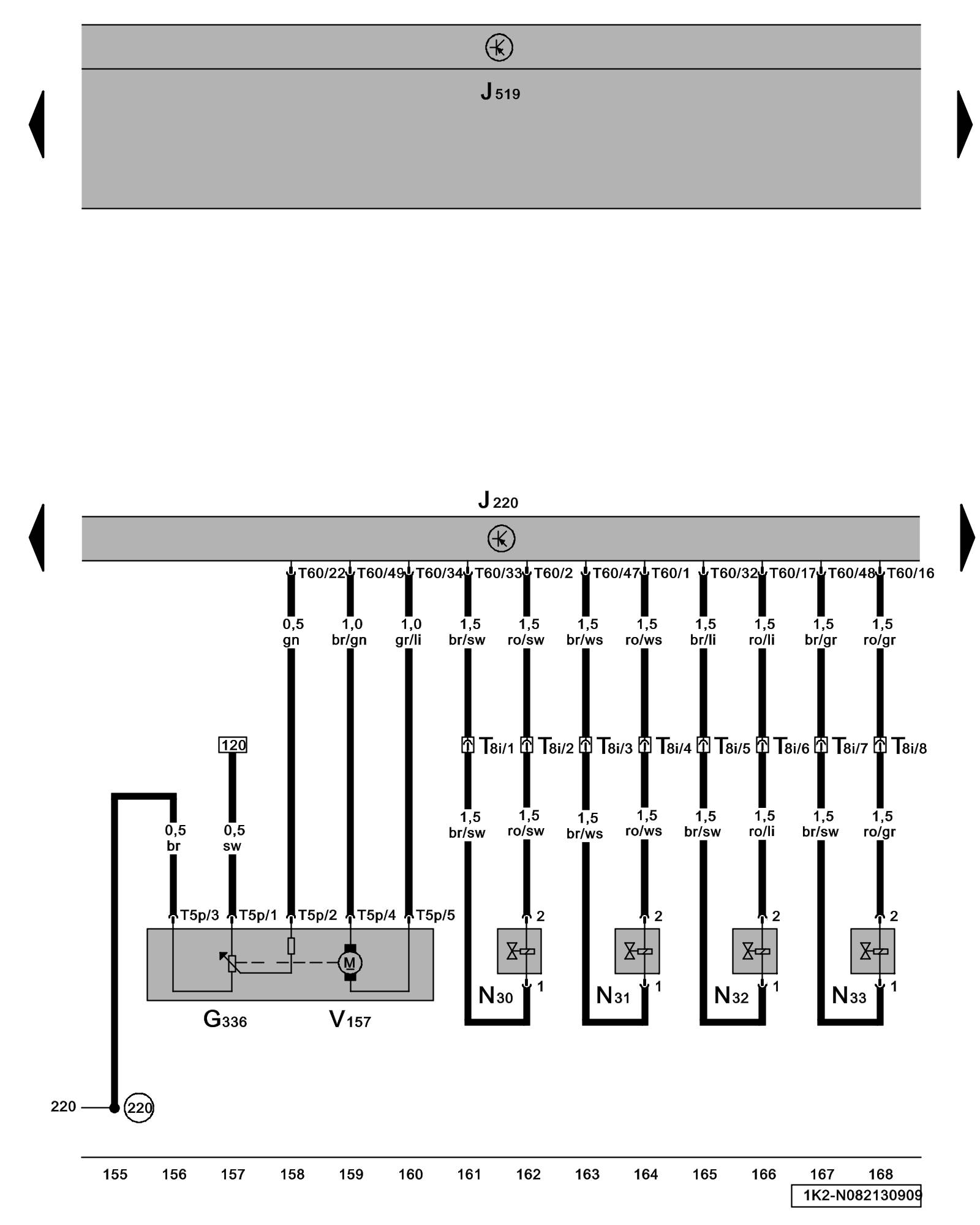

Intake Manifold Runner Position Sensor, Motronic Engine Control Module (ECM), Intake Flap Motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G336 - Intake Manifold Runner Position Sensor 2.0L BPY, CCTA and CBFA

J220 - Motronic Engine Control Module (ECM)

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

N30 - Cylinder 1 Fuel Injector Locations

N31 - Cylinder 2 Fuel Injector Locations

N32 - Cylinder 3 Fuel Injector Locations

N33 - Cylinder 4 Fuel Injector Locations

T5p - 5-Pin Connector

T8i - 8-Pin Connector

T60 - 60-Pin Connector

V157 - Intake Flap Motor Locations

(220) - Sensor Ground Connection (in engine compartment wiring harness)
