Diagram 82/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

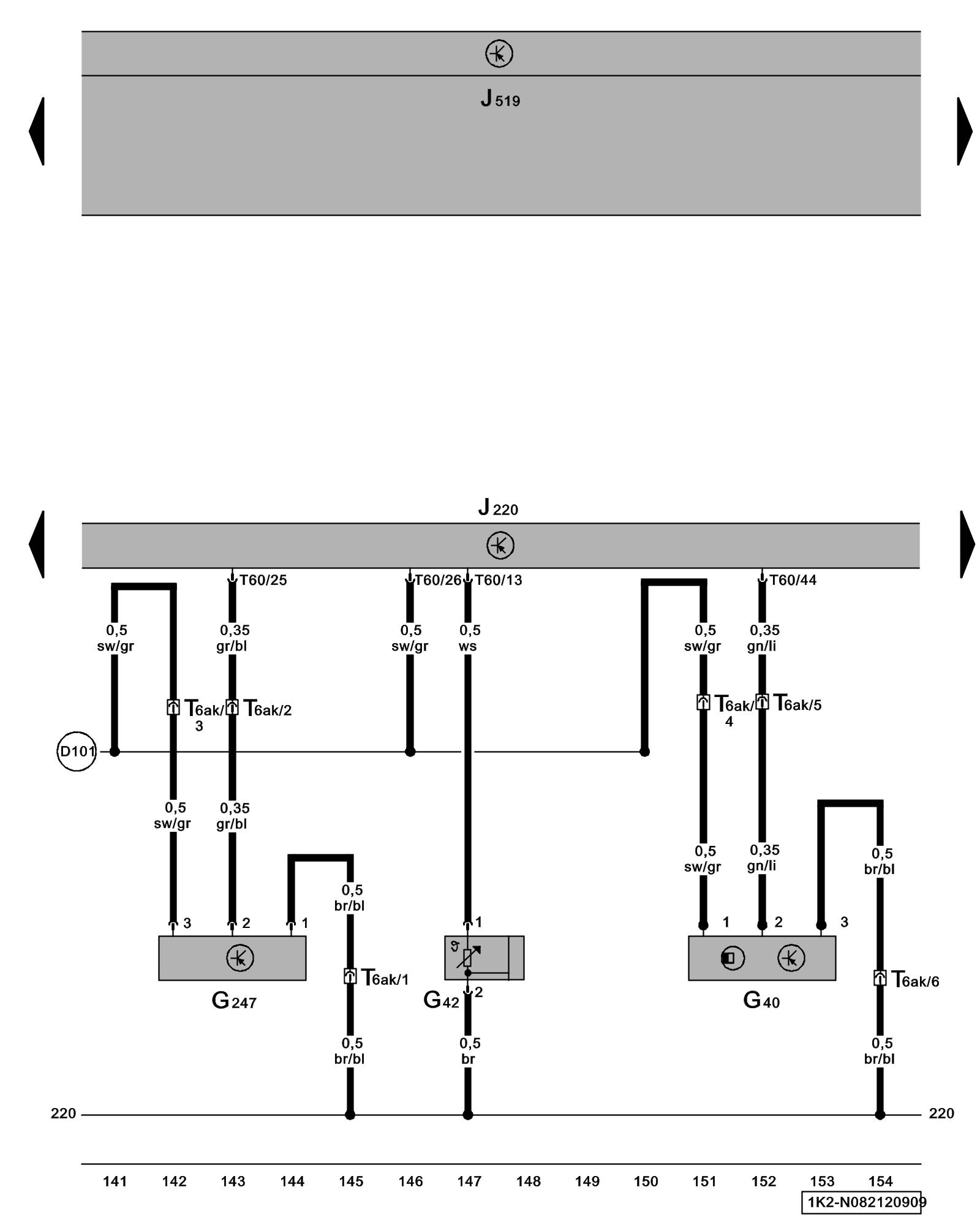

Camshaft Position (CMP) Sensor, Intake Air Temperature (IAT) Sensor, Fuel Pressure Sensor, Motronic Engine Control Module (ECM)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G40 - Camshaft Position (CMP) Sensor Locations

G42 - Intake Air Temperature (IAT) Sensor Locations

G247 - Fuel Pressure Sensor Locations

J220 - Motronic Engine Control Module (ECM)

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

T6ak - 6-Pin Connector

T60 - 60-Pin Connector

(D101) - Connection 1 (in engine compartment wiring harness)

Previous Diagram 82/11 (Tracks 127-140)

Next Diagram 82/13 (Tracks 155-168)
