Diagram 82/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

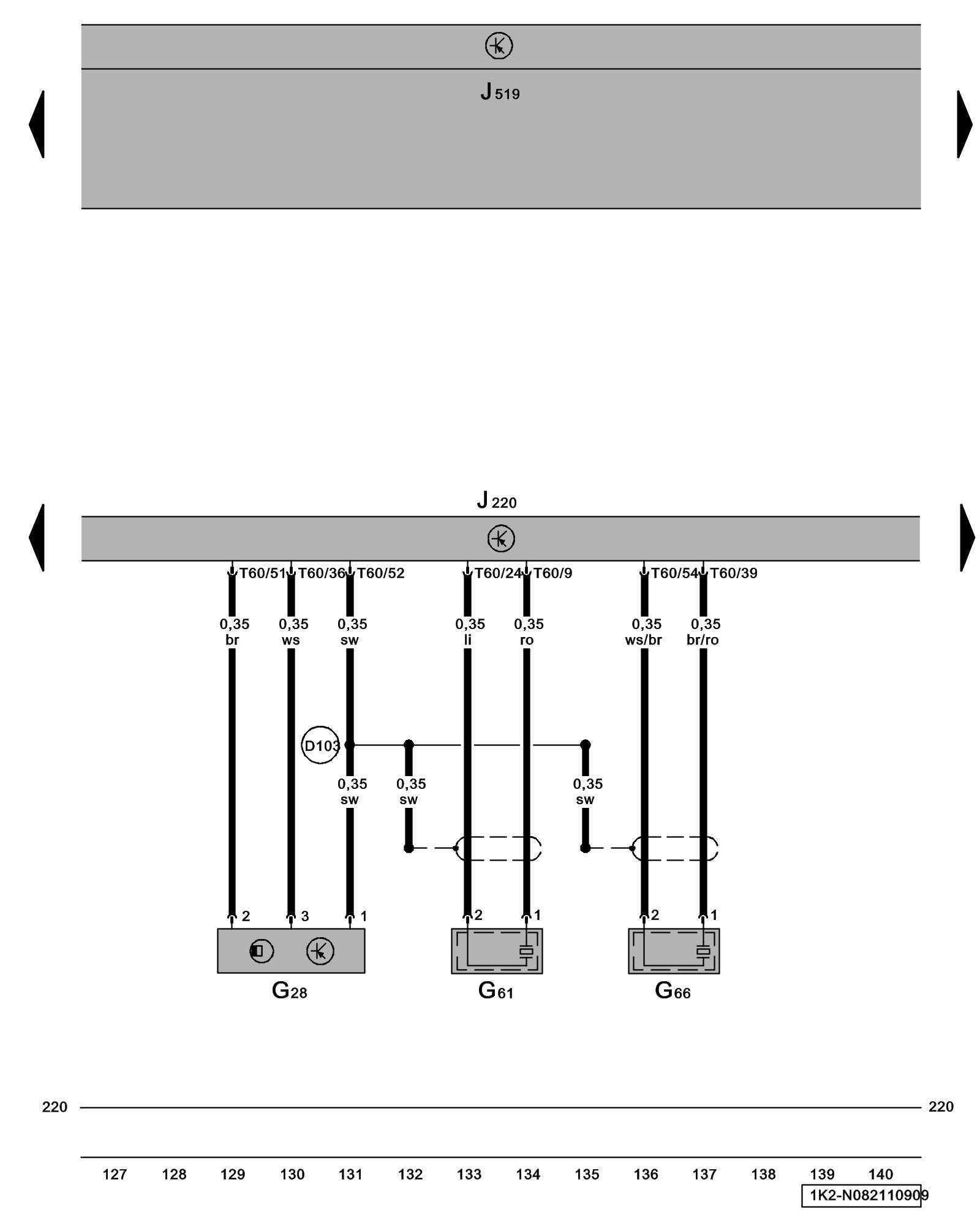

Engine Speed (RPM) Sensor,Knock Sensor (KS) 1,Knock Sensor (KS) 2,Motronic Engine Control Module (ECM)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G28 - Engine Speed (RPM) Sensor Locations

G61 - Knock Sensor (KS) 1 Locations

G66 - Knock Sensor (KS) 2 Locations

J220 - Motronic Engine Control Module (ECM)

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

T60 - 60-Pin Connector

(D103) - Connection 3 (in engine compartment wiring harness)
