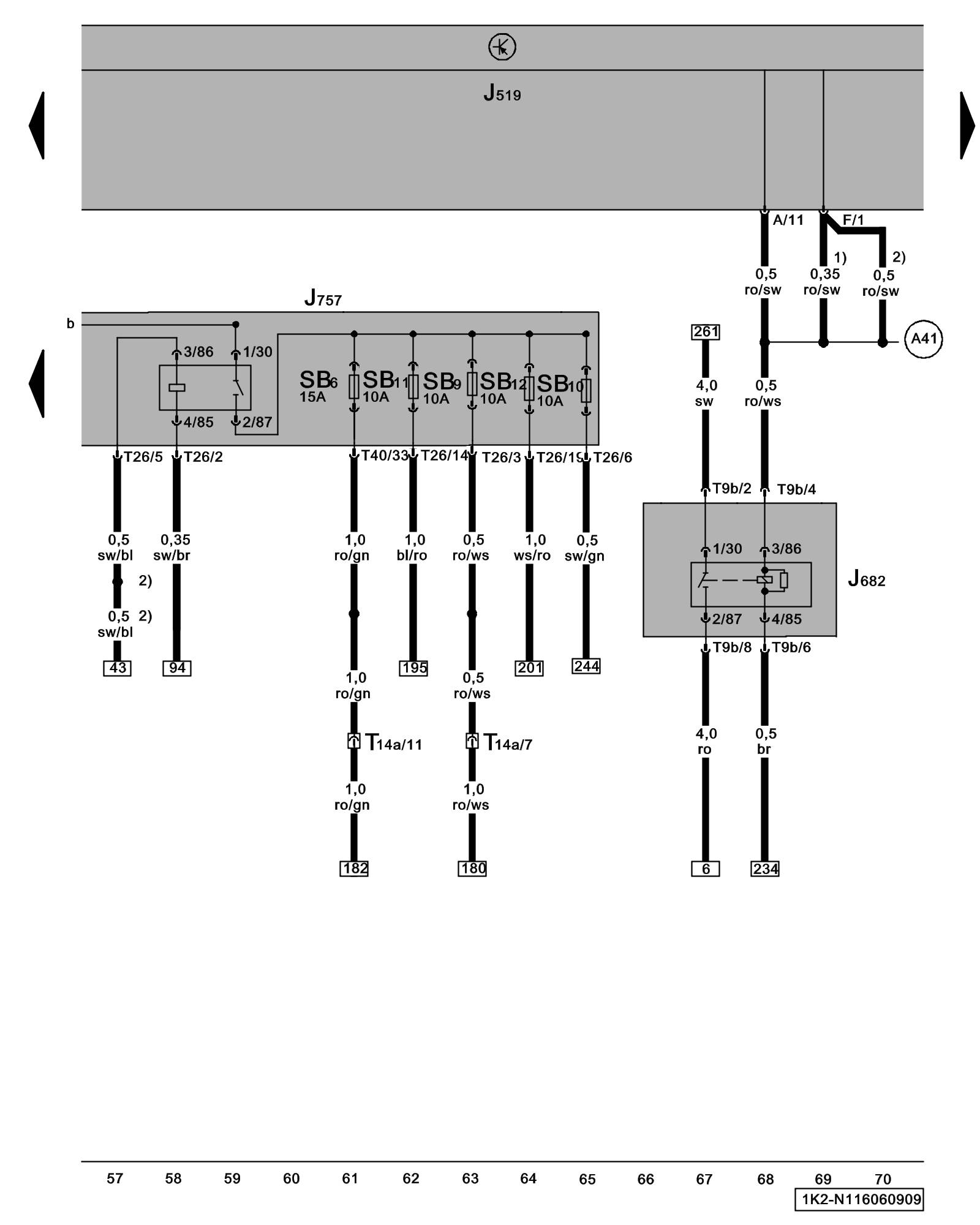

Diagram 116/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Power Supply Relay (terminal 50), Engine Component Power Supply Relay





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J682 - Power Supply Relay (terminal 50) Locations

J757 - Engine Component Power Supply Relay Locations

SB6 - Fuse 6 (on fuse panel B)

SB9 - Fuse 9 (on fuse panel B)

SB10 - Fuse 10 (on fuse panel B)

SB11 - Fuse 11 (on fuse panel B)

SB12 - Fuse 12 (on fuse panel B)

T9b - 9-Pin Connector

T14a - 14-Pin Connector

T26 - 26-Pin Connector

T40 - 40-Pin Connector

(A41) - Plus Connection (50) (in instrument panel wiring harness)

1) - Through June 2007

2) - From July 2007
