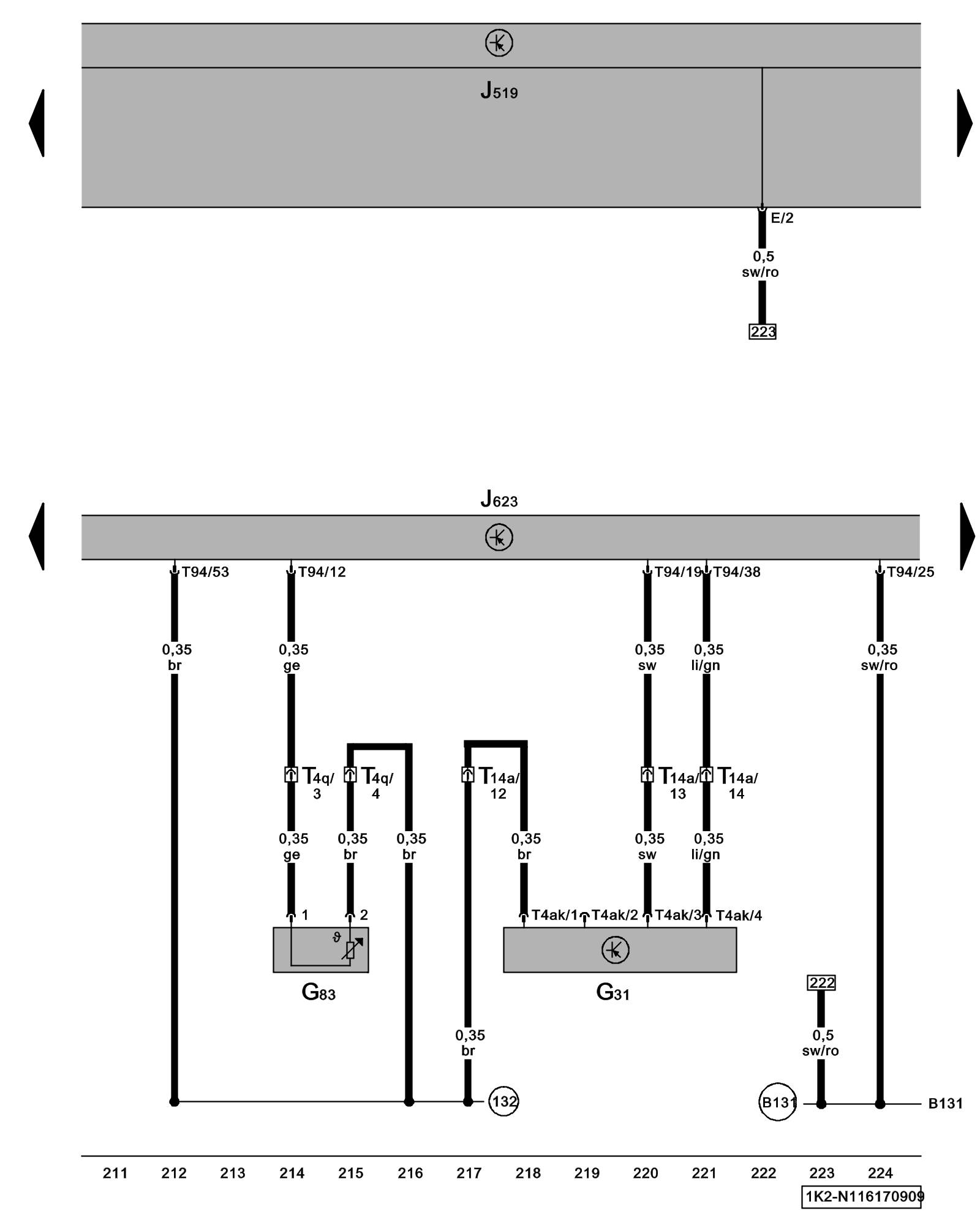

Diagram 116/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Charge Air Pressure Sensor, Engine Coolant Temperature (ECT) Sensor (on Radiator), Vehicle Electrical System Control Module, Engine Control Module (ECM)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G31 - Charge Air Pressure Sensor Locations

G83 - Engine Coolant Temperature (ECT) Sensor (on Radiator) Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J623 - Engine Control Module (ECM)* Locations

T4ak - 4-Pin Connector

T4q - 4-Pin Connector

T14a - 14-Pin Connector

T94 - 94-Pin Connector

(132) - Ground Connection 3 (in engine compartment wiring harness)

(B131) - Connection (54) (in interior wiring harness)

* - Referenced in Self-Diagnosis and Guided Fault Finding as J220
