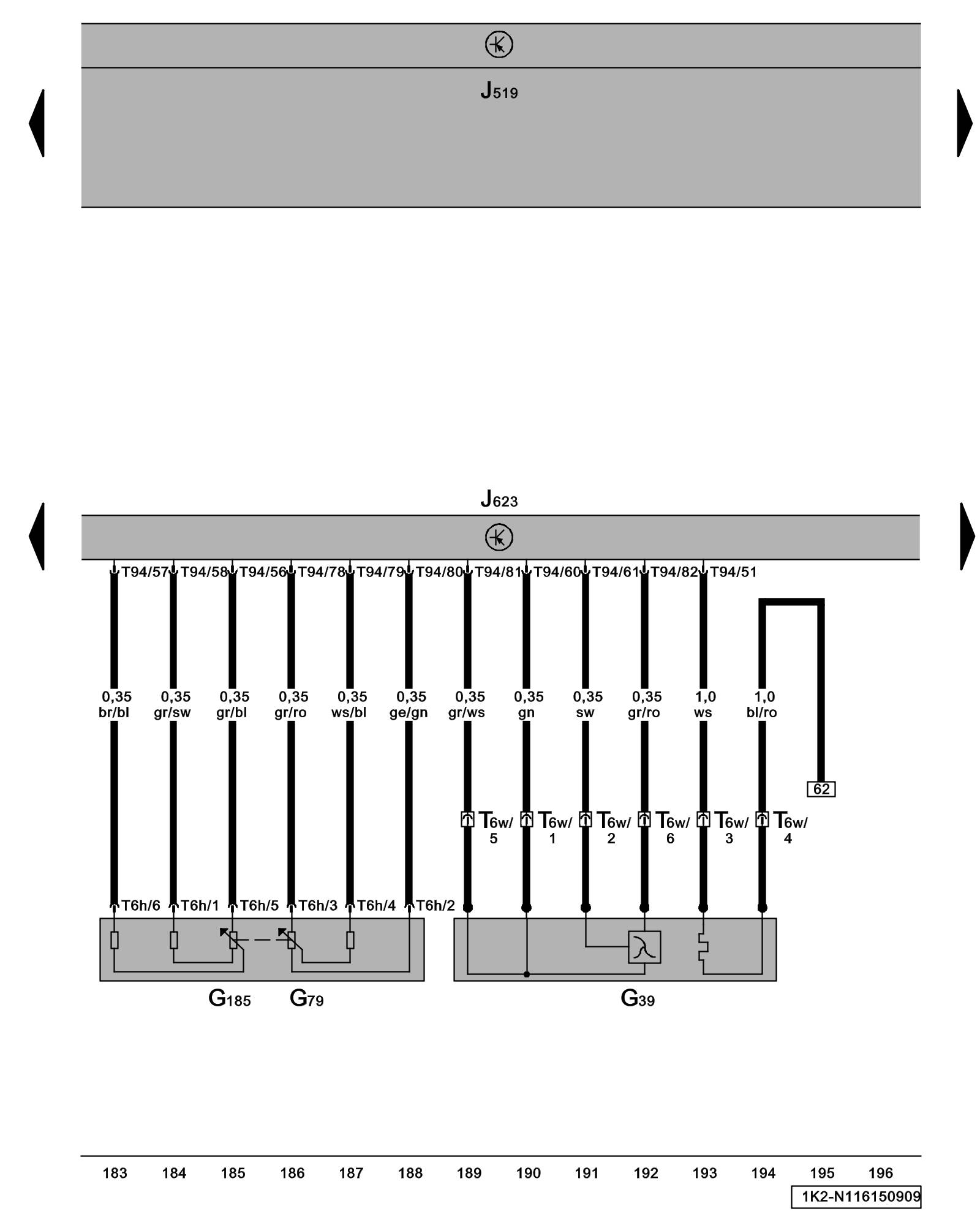

Diagram 116/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Heated Oxygen Sensor (HO2S), Throttle Position (TP) Sensor, Accelerator Pedal Position Sensor 2, Engine Control Module (ECM)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G39 - Heated Oxygen Sensor (HO2S) Locations

G79 - Throttle Position (TP) Sensor Locations

G185 - Accelerator Pedal Position Sensor 2 Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J623 - Engine Control Module (ECM)* Locations

T6h - 6-Pin Connector

T6w - 6-Pin Connector

T94 - 94-Pin Connector

* - Referenced in Self-Diagnosis and Guided Fault Finding as J220
