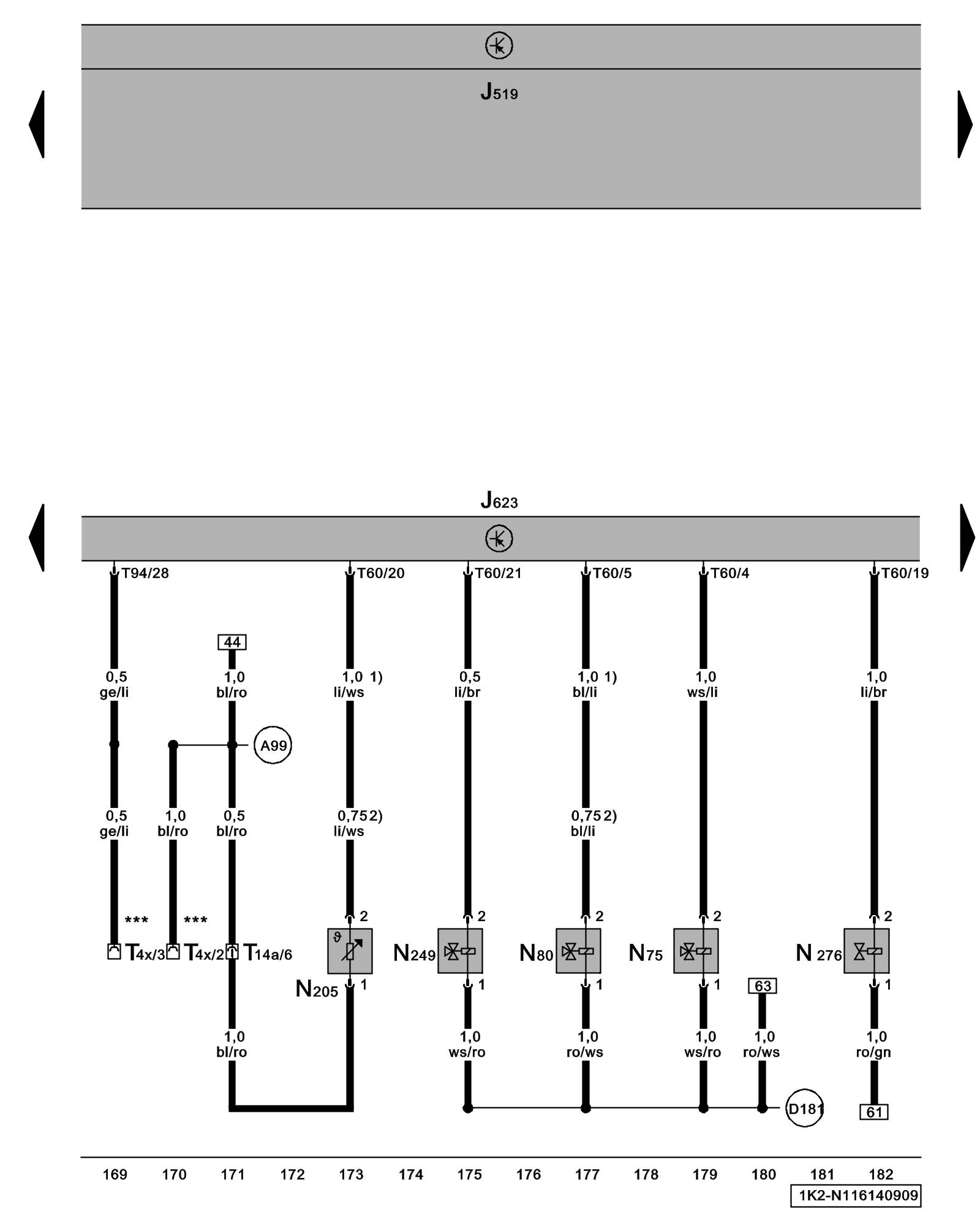

Diagram 116/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine Control Module (ECM), Wastegate Bypass Regulator Valve, Evaporative Emission (EVAP) Canister Purge Regulator Valve, Camshaft Adjustment Valve 1, Turbocharger Recirculating Valve, Fuel Pressure Regulator Valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J623 - Engine Control Module (ECM)* Locations

N75 - Wastegate Bypass Regulator Valve 2.0L BPY, CCTA and CBFA

N80 - Evaporative Emission (EVAP) Canister Purge Regulator Valve Locations

N205 - Camshaft Adjustment Valve 1 Locations

N249 - Turbocharger Recirculating Valve 2.0L BPY, CCTA and CBFA

N276 - Fuel Pressure Regulator Valve Locations

T4x - 4-Pin Connector

T14a - 14-Pin Connector

T60 - 60-Pin Connector

T94 - 94-Pin Connector

(A99) - Connection 1 (87) (in instrument panel wiring harness)

(D181) - Connection 2 (87a) (in engine wiring harness)

* - Referenced in Self-Diagnosis and Guided Fault Finding as J220

*** - Coolant fan connection

1) - Through June 2007

2) - From July 2007
