Diagram 116/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

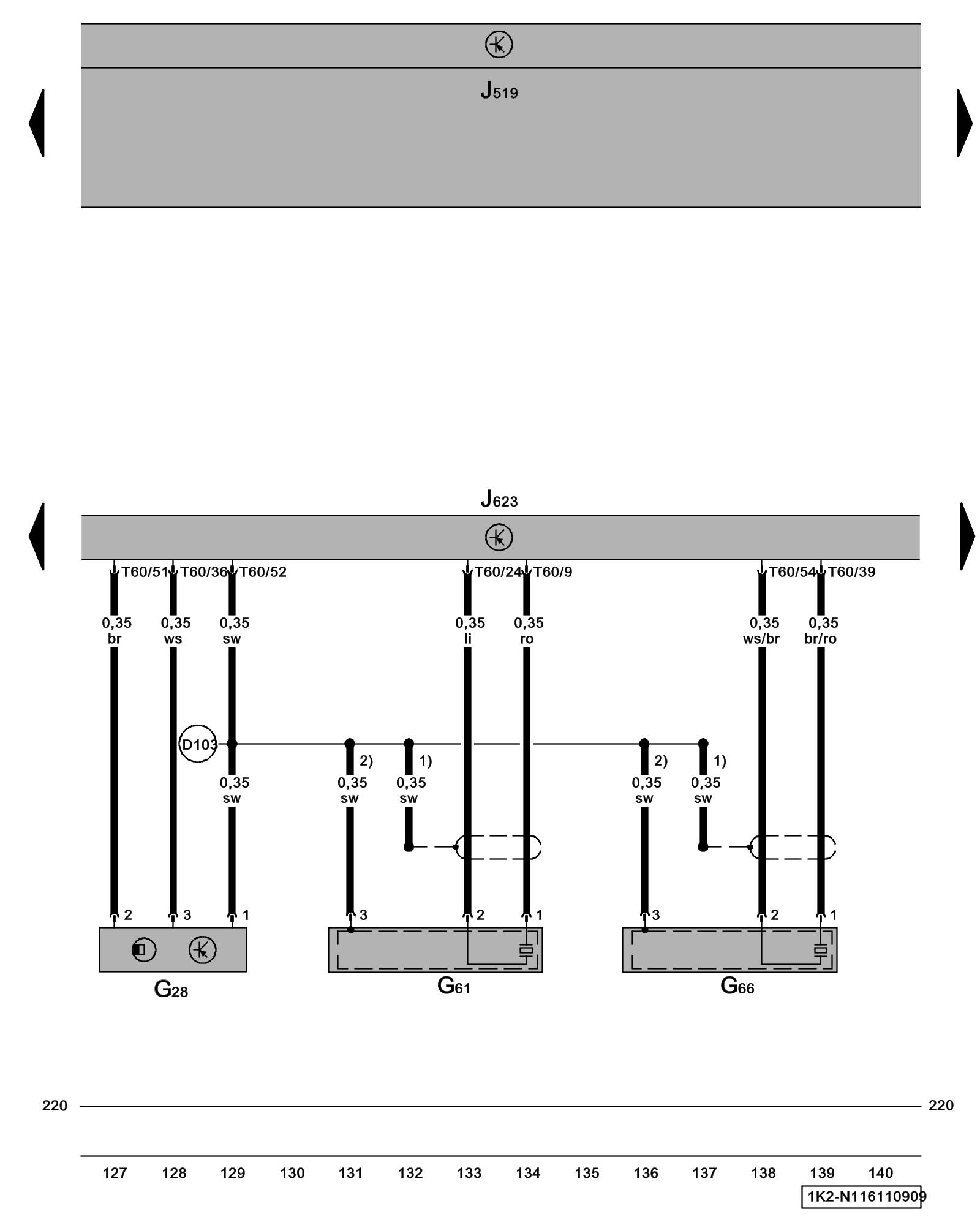

Engine Speed (RPM) Sensor, Knock Sensor (KS) 1, Knock Sensor (KS) 2, Engine Control Module (ECM)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G28 - Engine Speed (RPM) Sensor Locations

G61 - Knock Sensor (KS) 1 Locations

G66 - Knock Sensor (KS) 2 Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

J623 - Engine Control Module (ECM)* Locations

T60 - 60-Pin Connector

(D103) - Connection 3 (in engine compartment wiring harness)

* - Referenced in Self-Diagnosis and Guided Fault Finding as J220

1) - Through June 2007

2) - From July 2007

Previous Diagram 116/10 (Tracks 113-126)

Next Diagram 116/12 (Tracks 141-154)
