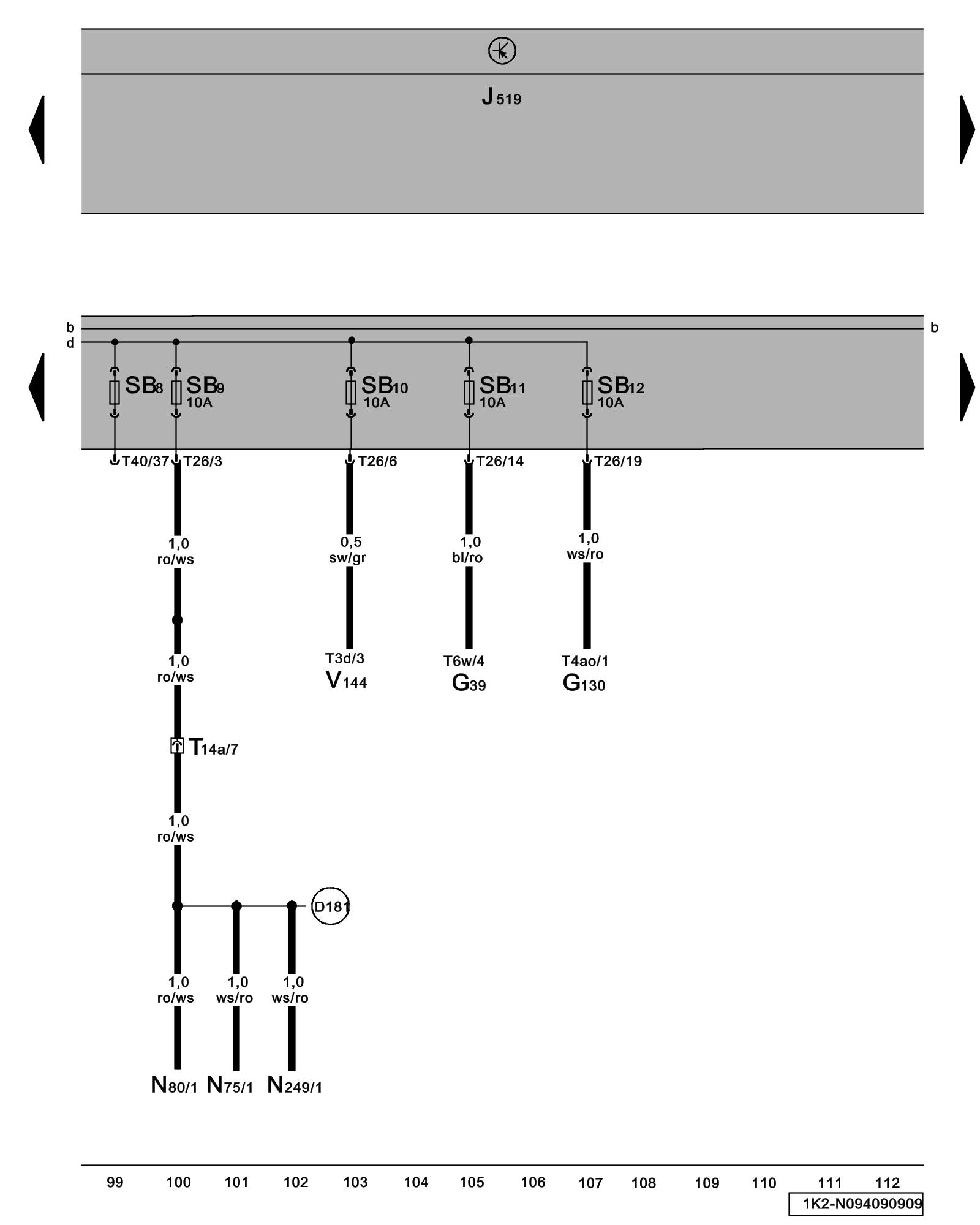

Diagram 94/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses SB on fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G39 - Heated Oxygen Sensor (HO2S) Locations

G130 - Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) Locations

J519 - Vehicle Electrical System Control Module Component Locations Vehicle Electrical System Control Module -J519-

N75 - Wastegate Bypass Regulator Valve 2.0L BPY, CCTA and CBFA

N80 - Evaporative Emission (EVAP) Canister Purge Regulator Valve Locations

N249 - Turbocharger Recirculating Valve 2.0L BPY, CCTA and CBFA

SB8 - Fuse 8 (on fuse panel B)

SB9 - Fuse 9 (on fuse panel B)

SB10 - Fuse 10 (on fuse panel B)

SB11 - Fuse 11 (on fuse panel B)

SB12 - Fuse 12 (on fuse panel B)

T3d - 3-Pin Connector

T4ao - 4-Pin Connector

T6w - 6-Pin Connector

T14a - 14-Pin Connector

T26 - 26-Pin Connector

T40 - 40-Pin Connector

V144 - Leak Detection Pump (LDP) Locations

(D181) - Connection 2 (87a) (in engine wiring harness)
